L22779H00 External Axis Encoder Extension Cable

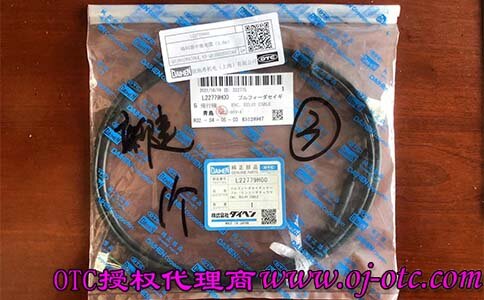

Original OTC DAIHEN L22779H00 External Axis Encoder Extension Cable (1.6m)

OTC DAIHEN L22779H00 Encoder Extension Cable (standard factory length 1.6 meters) is an essential communication link within automated robotic welding cell external axis systems. Individually packaged in high-quality OEM protective bags, this cable is designed specifically to connect servo motor encoders on external positioners (single/dual-axis positioners, head-tail stocks) and slider travel tracks. When robotic cell layouts require custom long-distance routing or when native encoder harnesses fall short, this genuine relay cable provides lossless extension, ensuring high-frequency digital position pulse signals from external axes are fed back to the robot controller motherboard with zero latency.

⚠️ Purchasing Alert: Do Not Confuse with L22779G00 Power Cable

A common procurement mistake in external axis maintenance is confusing signal cables with power cables. Please verify your part numbers carefully: L22779H00 is strictly an encoder signal extension cable (transmitting low-voltage pulse data). Conversely, our companion product L22779G00 is a motor power supply extension cable (transmitting high-voltage driving current). Their internal conductor gauges and aviation connector pin configurations are completely different. External axis maintenance typically requires ordering both cables as a matched replacement set.

🌟 Core Technical Advantages & EMI Immunity

• Double Shielding for Extreme EMI Environments: External positioners operate immediately adjacent to high-current welding zones, where intense arc initiation electromagnetic interference (EMI) can trigger communication errors in positioner servo systems. The L22779H00 integrates a high-density tinned copper braided mesh combined with flame-retardant aluminum foil double shielding, isolating external electrical noise to maintain millimeter-level positioning accuracy.
• Drag-Chain Grade High Flexibility: The outer jacket utilizes a specialized industrial polymer composite, offering exceptional mechanical flex life, torsional resistance, and deep immunity against workshop oil and coolant degradation. It withstands continuous reciprocating bending stress inside track drag chains during positioner articulation.
• OEM Keyed Aviation Connectors: Pre-terminated with genuine Japanese keyed aviation connectors with gold-plated pins, preventing vibration-induced loosening while maintaining low contact resistance for flawless signal relay.

🔧 External Axis Wiring & Field Troubleshooting Guide

• Never Tension Tightly Inside Drag Chains: When routing the L22779H00 inside external axis drag chains, maintain approximately 10% free slack. Never allow cables to operate under taut, stretching tension; when the external axis articulates to its extreme rotational limits, severe pulling force can fracture internal micro-conductors, causing intermittent robot controller error halts.
• Periodically Inspect Connector Sealing: External axis connections are located near workshop floors where dust accumulation and washdown fluids present contamination risks. If coolant containing conductive iron dust penetrates aviation plugs, it causes short circuits in low-voltage signal lines, resulting in encoder step loss. Replace compromised harnesses immediately with genuine OEM cables rather than attempting field repairs.
