AW-12 TIG Welding Torch

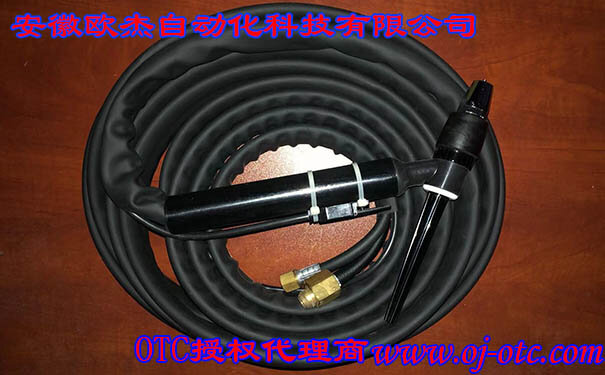

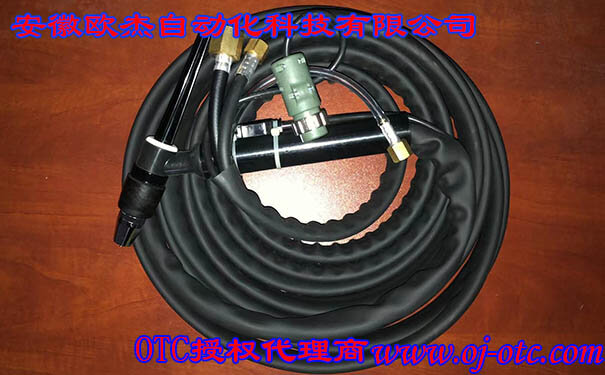

Genuine Japanese OTC DAIHEN AW-12 Heavy-Duty Water-Cooled TIG Welding Torch

OTC DAIHEN AW-12 represents the pinnacle of Gas Tungsten Arc Welding (GTAW/TIG) performance. As an authentic Japanese imported heavy-duty water-cooled TIG torch, it is engineered specifically to survive extreme thermal input environments, boasting an exceptional 500A peak current capacity and a 100% continuous duty cycle. Whether deployed as a manual deep-penetration welding instrument for heavy metal structural assemblies or integrated into automated welding machines requiring 24/7 non-stop operation, the AW-12 utilizes advanced water cooling and a rugged torch chassis to maintain unwavering arc stability and weld pool protection.

✨ Key Technical Advantages & Engineering Features

• 100% Continuous Duty Cycle: The torch head cavity and power cable assembly integrate oversized, high-flow cooling water channels. Powered by an external water recirculator, the torch head maintains low operating temperatures even under continuous 500A peak current loads, eliminating thermal attenuation and consumable overheating.
• Dual Manual & Automated Applicability: Combining ergonomic weight distribution with highly flexible, heat-resistant cable harnesses, the torch allows manual welders to manipulate heavy aluminum and stainless steel assemblies effortlessly. Furthermore, its exceptional concentricity and mechanical rigidity make it ideal for direct clamping onto automated specialized welding machinery.
• Heavy-Gauge Tungsten Electrode Compatibility: Accommodates standard heavy-gauge non-melting tungsten electrodes including 1.6mm, 2.4mm, and 3.2mm diameters, supporting high-deposition wire feeding and heavy oxide layer penetration on thick workpieces.
• Long-Lifespan High-Temperature Torch Head: Insulating gaskets and gas diffusers are fabricated from aerospace-grade heat-resistant ceramics and specialized polymers, multiplying replacement intervals across extreme temperature welding environments.

🏭 Typical Heavy-Duty Welding Applications

Renowned for its uncompromised heat dissipation and current conduction, the AW-12 water-cooled TIG torch is the standard execution unit across heavy manufacturing sectors:

• Heavy Automated Welding專机: Serves as the core welding head on large circumferential seam welders, longitudinal seam seamers, and automated tube-to-tube welding systems, meeting rigorous 24/7 continuous production demands.
• Aerospace & Defense Heavy-Plate Fabrication: Delivers ultra-pure laminar shielding gas coverage during high-current deep-penetration TIG welding of thick aluminum alloys, high-strength stainless steel, and exotic superalloys.
• Nuclear Power & Pressure Vessels: Utilizing standard 8-meter cable models, operators execute multi-pass root and capping passes on thick-walled vessels inside elevated or confined workspaces reliably.

📋 Technical Specifications & Operating Parameters

Complete Spare Parts & Consumables Catalog: OTC Daihen AW-12 Water-Cooled TIG Torch Parts & Specifications Quick-Reference Guide

🛠️ Maintenance Best Practices for 500A Water-Cooled TIG Torches

• Mandatory Water Flow Verification Prior to Arc Ignition: Operating at 500A generates immense thermal energy; internal power cables rely entirely on high-pressure water circulation to dissipate heat. **Never initiate an arc without active cooling water circulation!** Insufficient water pressure or dry firing melts expensive water-cooled power cable bundles instantaneously.
• Purge Water Channels Periodically with Specialized Coolant: Prolonged heavy-current welding accelerates coolant evaporation and scaling. Use specialized anti-corrosion, anti-freezing welding coolants; never use untreated tap water long-term, preventing micro-cooling channels inside the torch head from scaling closed.
• Tungsten Collet & Body Maintenance Under Heavy Loads: After continuous 500A operation, copper collets may suffer slight annealing deformation from intense heat. Inspect collet clamping retention regularly; if tungsten electrodes slip or bind, replace collets immediately with OEM consumables to prevent arcing inside the torch body.
