L23700P00 Teach Pendant Connector

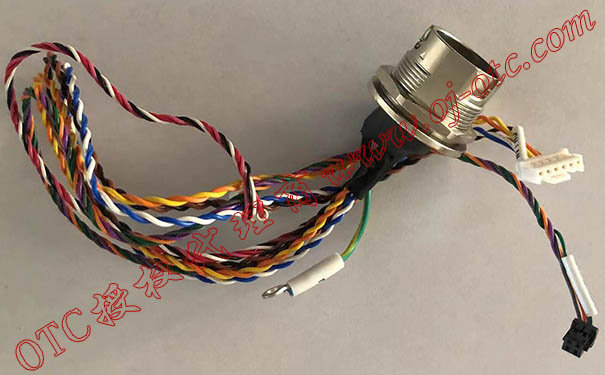

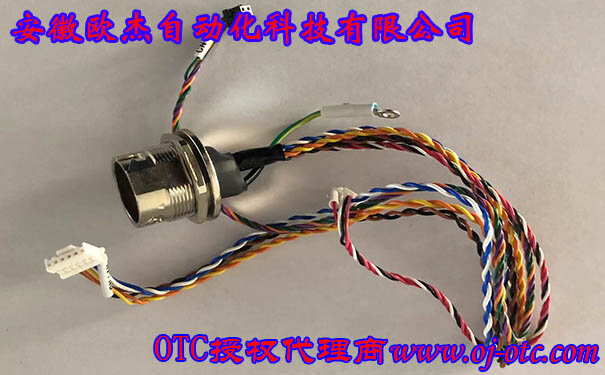

OTC DAIHEN Genuine FD19 Robot Controller Teach Pendant Cable Connector Assembly L23700P00 In-Depth Analysis

OTC DAIHEN L23700P00 Teach Pendant Cable Connector Assembly is the dedicated physical communication interface engineered specifically for handheld programming consoles on OTC latest-generation FD19 robot controllers (model: FD19TP-DSJNC). Cataloged across official BOM documentation as a “cable assembly” and known across workshop floors as a “teach pendant connector” or “aviation quick-plug”, it mounts directly into the rear port of handheld teach consoles. It transmits high-definition display graphics, keypad programming instructions, and critical emergency stop (Deadman switch) safety circuits across external 8-meter or 15-meter cables without attenuation. As an authentic Japanese imported component delivering exceptional mating cycle durability and tensile pull strength, it provides the fundamental hardware defense against teach console connection failure, black screens, and false E-stop alarms.

🌟 Impact-Resistant Enclosure & Multi-Channel Gold-Plated Contacts

• Dedicated Micron Tooling Match for FD19: Custom-designed to match mounting contours and motherboard headers on FD19 teach pendants, this connector features an impact-resistant engineering polymer housing molded to strict micron tolerances. Mating seamlessly with console alignment slots, it ensures that continuous workshop handling, dropping, and pulling generate zero looseness or gap separation between the plug and console body.
• High-Density Aviation Gold-Plated Pins: The L23700P00 incorporates multi-channel communication pin arrays. To prevent low-voltage digital signal degradation across long extension cables, all contacts undergo OEM high-spec gold plating. This treatment ensures smooth mating while maintaining ultra-low contact resistance, providing complete immunity against pin oxidation caused by workshop humidity and dust.
• Side-Shear Strain Relief Architecture: Workshop operators frequently drag teach pendants by pulling communication cables directly, exerting severe lateral shear stress across rear connector housings. The L23700P00 integrates an advanced internal strain relief (Strain Relief) clamping structure that disperses destructive pulling forces evenly across the polymer shell, protecting delicate internal solder joints against mechanical severance.

🔧 Field Replacement & Troubleshooting Guide for Live Unplugging Hazards

• ⚠️ Safety Red Line: Prohibit Live Unplugging of Teach Pendant Plugs! When servicing or replacing a damaged L23700P00 connector, **technicians must never unplug or plug connectors while the control cabinet is powered on!** Teach pendant bus lines carry 24V power and 5V communication signals simultaneously; arcing generated during live plugging tracks across pins, discharging backward to destroy teach pendant CPU chips and cabinet backplanes instantly. Always disconnect main power and wait 3 minutes before servicing.
• Deep Dust Purging to Prevent Micro-Short Circuits: Before installing a new connector, apply dry compressed air to blow out the receptacle socket on the teach pendant rear housing thoroughly. Airborne conductive metal dust accumulates around pin bases; installing a new plug over uncleaned dust causes immediate micro-short circuit alarms upon power-up.
• Never Force Connectors Without Alignment: The L23700P00 features multiple alignment keyways. Align keyways visually before pushing straight in gently until hearing a distinct positive-locking click. Forcing connectors at an angle bends or breaks gold-plated copper pins, destroying brand-new assemblies immediately.

• Expedited Worldwide Dispatch & Maintenance Support: For automated manufacturing plants experiencing line halts due to teach pendant connector damage or accidental severance, Anhui Oujie Automation provides rapid international courier dispatch directly from stock to ensure rapid console refurbishment and production recovery.
• Access Complete FD19 Teach Pendant BOM Documentation: If replacing switch buttons or internal PCBs on this console simultaneously, reference our technical guide Complete OTC FD19 Series Teach Pendant FD19TP-DSJNC Exploded Views & Parts List to ensure accurate part ordering.
