L7250B04 Contact Tip

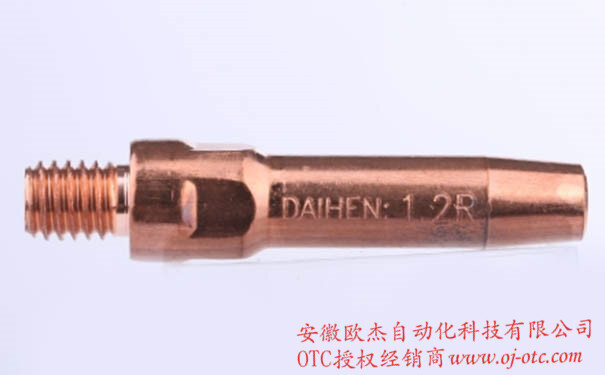

OTC DAIHEN Genuine Heavy-Duty Robot Welding Torch Contact Tip L7250B04 (1.2mm / 40mm) In-Depth Analysis

OTC DAIHEN L7250B04 Contact Tip is a critical front-end electrical and mechanical consumable engineered specifically for high-load robotic and semi-automatic Gas Metal Arc Welding (GMAW/MIG/MAG) torches. Manufactured to exact dimensions of 1.2mm wire bore diameter and 40mm overall length, this authentic Japanese imported contact tip is responsible for transferring hundreds of amperes of welding current into moving welding wire while guiding it precisely into the weld pool. Under continuous high-current arc radiation and rapid automated wire feeding, utilizing genuine L7250B04 contact tips is the fundamental hardware requirement for preventing arc ignition stutter, premature tip burn-back, and tool center point (TCP) trajectory drift.

🌟 Metallurgy Craftsmanship & Micron-Level Bore Precision

• Premium Chrome-Zirconium-Copper (CuCrZr) Alloy: Operating inches from the molten weld pool, contact tips endure intense thermal radiation. Unlike ordinary brass or standard copper copies that soften rapidly and ovalize under heat, the genuine L7250B04 is forged from specialized OEM Chrome-Zirconium-Copper (CuCrZr) alloy subjected to aging heat treatment. Maintaining superior hardness and mechanical wear resistance at temperatures exceeding 400℃, it resists internal bore erosion and thermal softening, multiplying consumable lifespan several-fold in automated production cells.
• Mirror-Polished Micron-Bore Tolerances: The internal 1.2mm wire bore is machined using specialized deep-hole micro-drilling and diamond mirror-polishing techniques. Eliminating internal burrs, tool marks, and geometrical irregularities, it allows solid carbon steel or stainless steel welding wire to pass through smoothly without scraping copper plating off the wire. This prevents internal copper dust clogging, micro-arcing inside the bore, and erratic wire feeding.
• Precision Threading & TCP Rigidity: External mounting threads are machined to strict micron tolerances, locking seamlessly into the tip body / contact tip adapter. This tight mechanical fit ensures ultra-low electrical contact resistance while locking the contact tip firmly along the torch axis, preventing mechanical loosening from vibration and ensuring repeatable tool center point (TCP) accuracy over thousands of welding cycles.

🔧 Field Maintenance & Troubleshooting Guide for Tip Burn-Back & Wear

• Prevent Tip Burn-Back Caused by Incorrect Parameter Settings: Burn-back occurs when the welding arc fuses welding wire directly to the end of the contact tip. To prevent burn-back when using L7250B04 tips, ensure that robot controller arc-end burn-back time and voltage parameters are matched correctly to wire feeding speed. Furthermore, inspect the workpiece grounding clamp; high ground loop resistance causes erratic arc voltage that frequently triggers instant tip fusion.
• Immediate Replacement Upon Bore Ovalization: Under continuous wire feeding friction and robotic wrist rotation, the internal bore of any contact tip eventually wears into an oval or keyhole shape. **Once bore ovalization occurs, welding wire loses consistent electrical contact, causing arc fluttering, coarse spatter, and seam wandering.** In high-precision automotive chassis or structural steel welding, replace L7250B04 contact tips proactively as scheduled consumables rather than waiting for weld defects to appear.
• Utilize Anti-Spatter Fluid & Automated Reamer Stations: Integrate robotic welding cells with automated cleaning stations (Reamer). High-frequency reamer blade clearing combined with light anti-spatter oil application prevents molten slag from bridging across the tip end and obstructing shielding gas flow.

• Expedited Worldwide Consumable Dispatch: For automated manufacturing plants experiencing consumable depletion or wire feeding halts, Anhui Oujie Automation provides rapid international courier dispatch directly from stock to ensure uninterrupted production.
• Complimentary Process Tuning Support: Procurement clients receive online engineering diagnosis from welding specialists to assist with TCP alignment diagnostics, burn-back parameter tuning, and automated reamer station setup.
