MR315T Thyristor Controlled DC Pulse TIG Welder

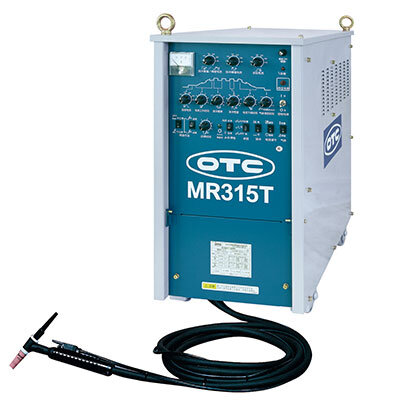

OTC DAIHEN MR315T Thyristor Controlled DC Pulse TIG Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN MR315T (Power Source Model: MRHP-315) is a classic thyristor-controlled DC pulse TIG and MMA three-in-one welding machine engineered for heavy industrial pipe networks and pressure vessels. Relying on an overbuilt constant-current power architecture, it ensures near 100% instantaneous ignition rates and rock-solid arc stability even during severe grid voltage fluctuations or long-cable operations. Its integrated low-frequency DC pulse functionality exerts rhythmic, precise control over weld pool heating and cooling cycles. This makes it an industrial heavyweight for executing single-sided welding with double-sided bead formation and wide-gap thin-sheet joining across stainless steel, nickel alloys, and copper alloys.

🌟 Core Process Advantages & Heavy Industrial Selling Points

• Unrivaled Arc Stability: Utilizes mature, proven thyristor full-bridge control to generate pure DC constant-current output. Even when operators weld in awkward vertical or overhead positions where arc length fluctuates continuously, welding current remains rock-solid without arc outages.
• Low-Frequency Pulsation & Flawless Molding: Tailored for NDT-grade weld seams. High peak pulse currents achieve deep penetration, while background currents allow the weld pool to cool and crystallize rapidly. This achieves single-sided root welding with double-sided bead formation while slashing thermal distortion on stainless steel.
• Multi-Layer, Multi-Pass Efficiency: Seamlessly integrates DC TIG, DC Pulse TIG, and Manual Metal Arc (MMA) welding in one host. On thick-wall pressure vessels, operators execute high-precision pulse TIG root passes and immediately switch to high-thrust MMA stick welding for high-efficiency capping passes.
• Heavy Industrial Armor & Extreme Durability: The 120kg chassis is packed with high-purity copper transformers and heavy-duty thyristor modules. Compared to delicate inverter welders, the MR315T exhibits exceptional immunity to metallic dust, high humidity, and electrical grid power surges, ensuring a decades-long service life.

🏭 Typical Heavy-Duty Applications & Applicable Materials

Specializing in DC polarity welding across ferrous metals and exotic alloys, the MR315T serves as standard equipment across heavy industries:

• Petrochemical & Pressure Vessels: Premium TIG root welding and all-position pipe joining for high-grade stainless steel, nickel-based alloys (e.g., Hastelloy), and heat-resistant steel reactors.
• Power Construction & Nuclear Piping: Defect-free single-sided welding with double-sided bead formation on boiler water walls and high-pressure steam pipelines.
• Marine Shipbuilding & Plant Infrastructure: Thrives in harsh outdoor environments for thick-plate pipeline joining, fully compatible with all grades of carbon and low-alloy steels.

📋 MR315T Core Technical Specifications Historical Archives

Below is the detailed electrical, physical parameter, and standard water-cooled configuration table, rigorously unit-decoupled (adhering to factory calibrations):

🔧 Thyristor Pulse TIG Welder Calibration & Water-Cooling Guide

• AW-18 Water-Cooled Torch Dry-Burn Prevention: The MR315T delivers 315A of intense current; its standard AW-18 torch relies entirely on circulating coolant to dissipate Joule heating from internal copper power cables. Never strike an arc without activating the recirculating water cooler (or direct tap water flow)! Even 3 minutes of dry burning at 100A melts internal braided copper shielding, ruining the entire original torch cable assembly permanently.
• Advanced Parameter Tuning for Low-Frequency Pulse TIG: To execute flawless single-sided welding with double-sided bead formation, welders must synchronize “peak current” and “background current.” Peak current penetrates the pipe wall to melt base metal, while background current (typically set to 15%–30% of peak) maintains arc ignition while allowing the puddle to freeze. Set pulse frequency between 0.5Hz and 2Hz and synchronize wire feeding (one dip per pulse) to achieve NDT-grade fish-scale welds.
• Spring Moisture Protection for Thyristor Transformers: The core of this 120kg machine consists of massive AC transformers and thyristor rectifier bridges. During humid rainy seasons or extended shutdowns, condensation forms on internal windings. Before striking an arc after long idle periods, let the machine idle under power (fan running only) for 20–30 minutes to physically evaporate moisture, preventing high-voltage insulation breakdown.
