P30110X00 Circuit Board

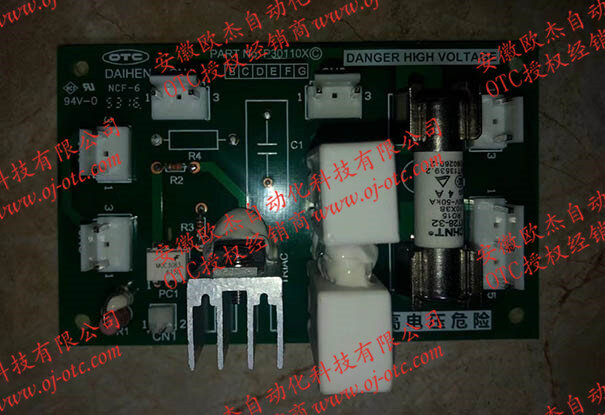

OTC Daihen Genuine Main Control Circuit Board P30110X / P30110X00

P30110X (P30110X00) is the genuine OTC Daihen main control circuit board specifically engineered for OTC CPVE digital inverter welding machines, perfectly matching CPVE250, CPVE350, CPVE400, and CPVE500 models. As the core computing unit of the welding system, this PCB integrates advanced arithmetic algorithms and control programs, governing parameter adjustment, arc ignition feedback, and comprehensive safety protection logic to guarantee stable welding performance.

📋 Core Technical Specifications

🔧 On-Site Replacement & Maintenance Guide

As a highly sensitive microelectronic control component, strict compliance with standard electrical safety protocols is required when replacing the P30110X00 PCB to prevent secondary electrostatic or short-circuit damage:

• Complete Power Disconnection & Capacitor Discharge: Never perform hot-swapping under live power. After switching off the main physical power switch, wait at least 5 minutes for internal high-voltage capacitors to discharge completely before removing the old circuit board.
• Strict ESD Protection: Technicians must wear a grounded ESD wriststrap during installation. Never touch exposed integrated circuit chips or bottom pins directly with bare hands to prevent static discharge from destroying microprocessors.
• Inspect Preceding Circuit Failures: Before installing the new PCB, use a multimeter to inspect the wire feeder, control cables, and input power supply for short circuits, phase loss, or insulation breakdown. Unresolved external high-voltage leakage will destroy the new board immediately upon power-up.
• Keyed Connector Alignment: Align keyed headers properly when connecting flat ribbon cables and wiring harnesses; never pull violently to avoid bent pins or broken internal copper conductors.

P30110X (P30110X00) is the genuine main control PCB for OTC Daihen CPVE series welding machines. We supply 100% original factory components with expert technical support for automated welding system repair and maintenance.
