P500L Low-Spatter Pulse MIG/MAG

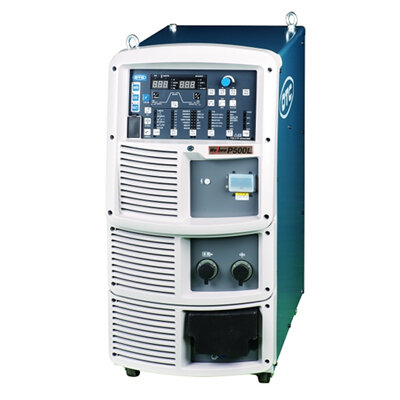

OTC DAIHEN P500L (WB-P500L) Full-Digital Smart Pulse Ultra-Low Spatter MIG/MAG Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN P500L (Official Model: WB-P500L) is an all-around heavy-duty flagship deeply reinforced on OTC’s Welbee P500 platform. It retains robust 500A output capabilities and exquisite aluminum pulse waveform control while seamlessly integrating the core specialty of the L-Series—CBT-EX (DC Ultra-Low Spatter Control Mode). To conquer complex operating environments across heavy automotive manufacturing, structural steel, and shipbuilding, the P500L features an unprecedented diversified wire feeder and water/air-cooled torch matrix. This transforms it into an ultimate smart arc welding mother machine mastering pure CO₂ low-spatter, stainless steel, and aluminum alloy welding while interfacing seamlessly with automation.

🌟 Core Technological Innovations & Versatile Process Selling Points

• Heavy-Duty 500A Meets CBT-EX Low Spatter: Conventional high-current CO₂ welding produces heavy spatter that degrades workshop environments. The P500L utilizes Welbee LSI processors to precisely contract current with microsecond speed at the instant of short circuit. Even under 500A full-load conditions with pure CO₂ gas, spatter volume is slashed to legacy mixed-gas levels—shattering the industry misconception that high current must produce heavy spatter and saving substantial labor and gas expenses annually.
• Aluminum “TIG-Class” Fish-Scale Beads & Vertical-Up Assistant: For aluminum alloys, the system embeds deeply optimized digital pulse waveforms to precisely regulate heat input and outgassing, effortlessly generating flawless fish-scale beads. Furthermore, optional “vertical-up welding” software utilizes alternating thermal current logic to support liquid metal against gravity, overcoming historical challenges in vertical seam welding on heavy structural steel and ships.
• Unprecedented Custom Feeding & Cooling Matrix: Unlike basic machines with single feeder setups, the P500L supports rich hardware expansion combinations. Whether executing ultra-low spatter carbon steel welding, recirculating water-cooled continuous stainless steel welding, or dual-drive large-diameter aluminum water-cooled welding, dedicated wire feeder models (such as CMV, CMW, and CMAW series) provide exact matching.
• USB Data Connectivity & Seamless Robotic Integration: The front panel includes a waterproof USB port supporting 100-group parameter backup/cloning and historical data traceability. Natively supporting high-speed inching current adjustment and arc spot welding, it serves as the ideal brain when paired with OTC industrial robots to build unmanned, transparent welding cells.

📋 P500L Core Technical Specifications & Comprehensive Configuration Matrix

Below is the detailed electrical, physical parameter, and material/cooling-specific configuration table, rigorously unit-decoupled (strictly adhering to industrial factory specifications):

🔧 P500L Ultra-Low Spatter Multi-Process Field Configuration & Guide

• Wire Feeder Compatibility Rule for Ultra-Low Spatter: If your primary goal for procuring the P500L is to eliminate carbon steel spatter via CBT-EX technology, you must ensure you select the dedicated CMV-7402 low-spatter wire feeder! Standard CM-7402 feeders lack the torque responsiveness required to execute microsecond waveform slicing commands from the mainboard. Mixing incompatible feeders severely degrades low-spatter performance and triggers frequent arc outages.
• Cooling Verification for 500A Heavy Water-Cooled Systems: When deploying CMW or CMAW series wire feeders paired with water-cooled torches (e.g., WTCW-5001) for 500A heavy-duty seam welding, always activate the water cooler and verify coolant circulation before igniting the arc! Water-cooled power cables have smaller copper cross-sections and rely entirely on liquid cooling; striking an arc without coolant flow will melt the internal power cable within seconds.
• Heated Gas Supply Requirement for CBT-EX Low Spatter: When operating in low-spatter mode under pure CO₂ shielding gas, gas flow must be maintained steadily at high volumes. You must install a W-198-220V or similar CO₂ flowmeter equipped with a 220V (or 36V) heating element. Without active heating, rapid gas decompression freezes the regulator valve, starving the weld pool of shielding gas and forming dense honeycomb porosity.
