Name: U30057M03 1.2mm Wire Feed Roller | OTC CME6401 Wire Feeder Part
Brand: OTC DAIHEN
SKU: U30057M03

OTC Daihen Genuine Wire Feed Roller U30057M03 (For CME6401 / 1.2mm Wire)

U30057M03 is an OEM genuine wire feed drive roll engineered by OTC Daihen specifically for CME6401 wire feeding units and 1.2mm diameter welding wire. Manufactured from high-strength industrial alloy steel and treated with advanced surface high-frequency quenching and precision groove machining, it delivers flawless wire traction under continuous heavy-duty gas-shielded welding cycles. From the primary mechanical feeding interface, it prevents wire slippage, copper coating peeling, and wire pulsation caused by worn or off-tolerance imitation rollers, ensuring smooth wire delivery and stable, flutter-free arc performance.

OTC Daihen Genuine Wire Feed Roller U30057M03 Front View — Figure 1: Front View of Genuine OTC 1.2mm Wire Feed Roller U30057M03

⚙️ Technical Specifications

Specification Attribute	Detailed Parameter
OEM Part Number	U30057M03
Product Type	Wire Feeder Main Drive Wire Feed Roller
Compatible Models	OTC CME6401 Wire Feeder Series
Applicable Wire Size	1.2mm diameter (Suitable for carbon steel, stainless steel solid/flux-cored wires)
Material & Treatment	High-strength alloy steel base + surface high-frequency induction quenching
Quality Guarantee	100% genuine factory brand-new part; zero wire shaving or slipping

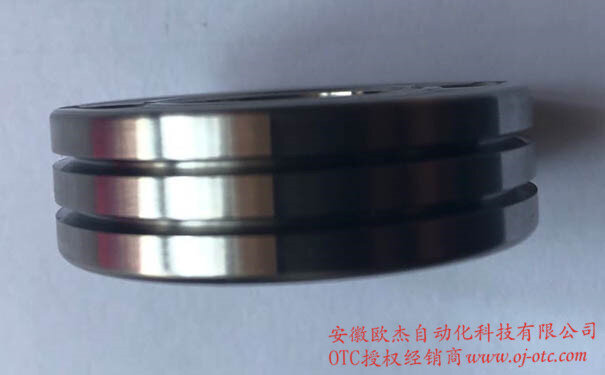

OTC Wire Feed Roller U30057M03 Side View — Figure 2: U30057M03 Groove Profile Details and Advanced Hardened Machined Surface

🔧 On-Site Installation & Troubleshooting Guide (Essential Reading)

Pressure Arm Tension Calibration: Do not over-tighten the pressure arm when slipping occurs. Excessive pressure flattens 1.2mm wire into an oval profile, scraping off copper plating and causing wire jams inside the liner. Adjust tension to the critical threshold where the roller just slips if the wire is momentarily obstructed at the contact tip.
Correct Groove Orientation: Ensure that the face marked “1.2” (or OEM silk screen) faces outward in accordance with the drive shaft locating keyway. Incorrect installation misaligns the U-groove with the guide tube, causing wire shaving and accelerated groove wear.
Zero Grease / Dust Prohibition: Never apply lubricating grease inside the wire feed grooves! Oil and grease act as a magnet for workshop dust and copper shavings, rapidly clogging the groove and causing total loss of wire feeding friction. Clean daily using dry compressed air only.
Downstream Feed System Checks: If wire feeding remains inconsistent after replacing U30057M03, verify whether the wire conduit liner is clogged with copper dust or if the contact tip bore is worn or obstructed by spatter.
