W-L02148 Servo Motor

OTC DAIHEN Genuine Robot Joint Drive Servo Motor W-L02148 In-Depth Analysis

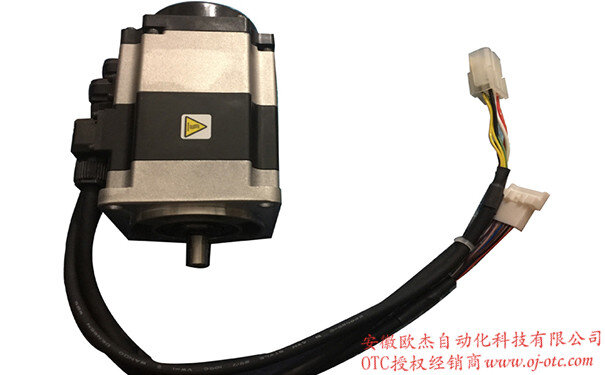

OTC DAIHEN W-L02148 Industrial Robot Servo Motor is the core driving power source responsible for executing high-precision three-dimensional motion across robotic manipulator joints. As an authentic Japanese imported component, this AC synchronous servo motor is engineered specifically to pair with designated transmission joints (such as rotational base axes, lower arm pitching axes, and designated wrist positions) on OTC industrial welding robots. Under demanding automated arc welding and material handling duty cycles characterized by rapid deceleration and continuous load reversal, the motor’s structural rigidity and electromagnetic precision directly govern tool center point (TCP) trajectory stability and final weld seam quality.

🌟 Core Power Architecture & High-Precision Feedback Technology

• High-Resolution Multi-Turn Absolute Encoder: The motor tail integrates an OEM vibration-resistant serial absolute encoder (Absolute Encoder). Unlike standard incremental encoders, absolute encoders maintain continuous position tracking across all robot joints during power outages via backup battery power. **When restarting the workstation after sleep mode or unexpected power loss, automated welding resumes immediately without requiring repetitive zero-point homing procedures.**
• High Torque Density Rotor & Instantaneous Overload Capacity: To accommodate frequent emergency stops, rapid acceleration, and tight circular arc interpolation, the W-L02148 features optimized Neodymium Magnet magnetic circuitry. Providing minimal rotor inertia and high peak torque within a compact frame, it delivers superior dynamic tracking performance, ensuring smooth torch motion during narrow-gap seam tracking and high-speed rapid traverses.
• Heavy-Duty NSK Support Bearings: As shown in the detailed photograph above, the motor spindle is supported by premium Japanese heavy-duty bearings (NSK or equivalent) lubricated with wide-temperature extreme-pressure grease. This construction withstands radial shear forces and axial thrust loads transmitted back from RV reduction gears, retarding spindle wear and ensuring long-term maintenance-free operation.

🔧 Field Replacement, Zero Calibration & Troubleshooting Guide

• Strictly Prohibit Live Unplugging to Prevent Encoder Breakdown: Before disconnecting power cables or low-voltage communication plugs on the W-L02148, always disconnect the main control cabinet breaker completely and verify that internal drive capacitors are fully discharged. Forcibly unplugging connectors under live load generates transient counter-electromotive force arcing that can flow backward to destroy fragile IC chips inside the absolute encoder.
• Inspect RV Reduction Gears Before Motor Installation: If the motor failure resulted from repetitive overload (Overload) or overcurrent alarms, **technicians must detach the flange and manually rotate the mating RV reduction gear to verify smooth mechanical transmission**. Forcing a new motor to operate against a seized or dry reduction gear will melt motor stator windings within seconds.
• Mandatory Absolute Zero-Point Mastering Post-Replacement: Mechanical disassembly detaches the physical drivetrain of the joint. **Never execute existing automated welding trajectory programs immediately upon powering up a newly installed W-L02148.** Technicians must access the calibration interface (Calibration) via the teach pendant (Teach Pendant), align axis mechanical alignment marks at ultra-low manual speed (or utilize OEM alignment fixtures), and rewrite absolute zero coordinates to prevent collision accidents.

• Expedited Worldwide Dispatch & Maintenance Support: For automated manufacturing facilities experiencing production halts due to motor overload or burnout, Anhui Oujie Automation provides rapid international courier dispatch directly from stock, along with remote technical guidance for mechanical assembly and zero-point calibration.
• Long-Term Spare Parts Storage Guidelines: For enterprise clients warehousing servo motors as strategic emergency spares, store units horizontally on dedicated shelving in a dry, vibration-free, temperature-controlled environment. Never remove OEM protective caps over receptacle ports to ensure optical encoder disks remain protected from moisture and dust.
