W-W05056 Auxiliary Transformer

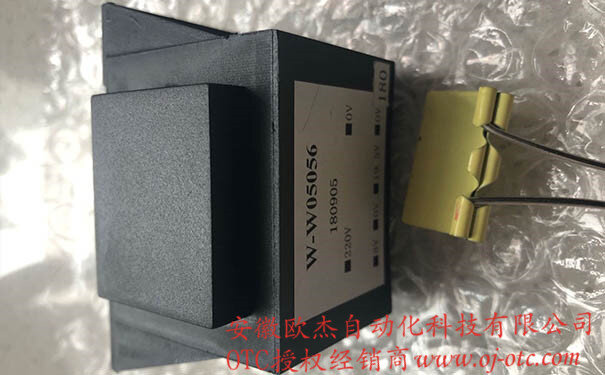

OTC DAIHEN W-W05056 Pure Copper Auxiliary Power Transformer for Welding Machine Control Circuit

OTC DAIHEN W-W05056 Industrial Auxiliary Transformer serves as the dedicated power station for internal low-voltage control systems in OTC gas-shielded welding machines. Unlike the main transformer responsible for high-output welding current, the auxiliary transformer precisely reduces and isolates high-voltage AC grid power into clean, low-voltage power required for main control PCBs (including P10261Q and P30037Y), wire feeder control loops, and front display panels. Using inferior transformers can cause severe output voltage drift during minor grid fluctuations, leading to control board reboots, parameter display errors, or even catastrophic high-voltage breakdown of expensive PCBs. W-W05056 strictly follows original OTC DAIHEN electrical standards with pure copper windings and high-permeability cores, providing rock-solid power protection for your welding automation equipment.

🔍 Pure Copper Windings & High Electromagnetic Isolation

• 100% Oxygen-Free Pure Copper Windings: As a continuously powered component, the auxiliary transformer remains operational whenever the welding machine is switched on. Both primary and secondary coils of W-W05056 are constructed from high-purity copper enameled wire. Extremely low DC resistance minimizes thermal buildup, maintaining low temperature rise even during prolonged continuous operation in high-temperature enclosures, completely eliminating insulation breakdown and internal short circuits common in cheap aluminum-clad transformers.
• High-Quality Silicon Steel Core & Surge Filtering: During arc ignition and droplet transfer, welding machines feedback intense high-frequency harmonics into the grid. W-W05056 utilizes ultra-thin high-permeability cold-rolled silicon steel laminations for superior conversion efficiency and quiet operation. It establishes robust electrical isolation between primary and secondary windings, filtering grid noise and delivering smooth voltage to the main PCB.
• Exact Factory Voltage Parameters & Plug-and-Play Terminals: Non-genuine transformers often suffer from inaccurate tap voltages (e.g., outputting 22V instead of the rated 18V), which accelerates PCB aging. W-W05056 undergoes rigorous factory voltage calibration under load. Its terminal connectors perfectly match OTC welding machine wiring harnesses for plug-and-play installation and minimum contact resistance.

🛠 On-Site Replacement Guide & Maintenance Precautions

• 🚨 Mandatory Safety Rule: Megohmmeter Insulation Testing Before Installation: The auxiliary transformer connects directly to 380V or 220V grid power. Before installing a new W-W05056, technicians must use a megohmmeter to measure insulation resistance between primary/secondary windings and the steel casing to prevent high-voltage pass-through caused by transit damage.
• Identify Root Cause of Failure: Auxiliary transformers rarely fail spontaneously. If the old unit is burnt, check for short circuits in secondary loads (e.g., main PCB power input breakdown, wire feeder motor cable short, or 24V contactor coil failure) using a multimeter before powering up the new transformer.
• Vibration-Proof Terminal Fastening: Welding machines generate operational vibration. Secure all four mounting screws with spring washers, and ensure plug-in terminal connectors are tightly clamped to prevent arcing and lead wire burnout.
