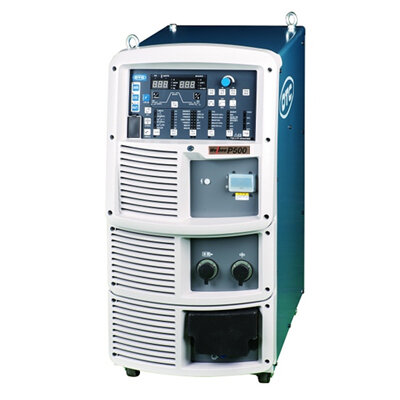

WB-P500 Full-Digital Pulse Welder

OTC DAIHEN WB-P500 (Welbee Inverter P500) Full-Digital Smart Pulse Multi-Material Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN WB-P500 is a 500A-class flagship full-digital pulse MIG/MAG welding machine integrating OTC’s latest Welbee dedicated LSI processing chip. Boasting formidable ultra-high-speed current and voltage sampling capabilities, it achieves CBT-EX ultra-low spatter in standard carbon steel CO₂ welding while excelling in aluminum alloy pulse welding to effortlessly produce exquisite TIG-class “fish-scale” weld beads. Robust 500A power, comprehensive USB data traceability management, and seamless robotic communication make the WB-P500 the premier digital upgrade choice for heavy piping, shipbuilding, automotive lightweighting, and large stainless steel structural fabrication.

🌟 Core Technological Innovations & Multi-Material Expert Process Selling Points

• CBT-EX Ultra-Low Spatter Control: Conventional pure CO₂ welding suffers from violent short-circuit transfer and heavy spatter. The WB-P500’s core CBT-EX control method precisely contracts current at the instant of short circuit, field-verified to reduce CO₂ welding spatter volume by approximately 60%! This drastically cuts grinding labor while eliminating the need for expensive shielding gas mixtures.
• Aluminum Alloy “TIG-Class” Fish-Scale Beads: Tailored for high-spec aluminum products and marine shipbuilding, the machine features digital pulse waveforms deeply optimized for aluminum. It perfectly regulates heat input and weld pool agitation to expel porosity, producing exceptionally uniform, high-aesthetic fish-scale weld beads.
• Specialized Vertical-Up Welding Assistant (Optional): In heavy fabrication and shipbuilding, vertical-up seam welding on thick plates is a major technical challenge. The WB-P500 supports optional vertical-up welding software; through specialized alternating current logic, it actively supports molten pool metal against gravity, enabling novice welders to execute flat, uniform vertical welds.
• Dual-Mode Stainless Steel Expert System: To accommodate demanding medical, chemical, and food-grade piping standards, the system comes standard with pulse modes for austenitic stainless steel (e.g., 304) and includes dedicated parameters for ferritic stainless steel (e.g., 430), ensuring bright weld appearance and preventing intergranular corrosion.

📋 WB-P500 Core Technical Specifications & Multi-Modal Configuration Matrix

Below is the detailed electrical, physical parameter, and material-specific matching component table, rigorously unit-decoupled (strictly adhering to industrial factory specifications):

🔧 WB-P500 Heavy-Duty Multi-Material Welding Field Configuration & Guide

• Duty Cycle Warning & Water-Cooling Recommendation for Heavy Workloads: Pay critical attention! The WB-P500 has a rated duty cycle of 60% at 500A in DC mode, and 80% at 400A in pulse mode. Continuous long-seam welding in heavy industrial applications generates immense thermal stress. We strongly recommend upgrading to a genuine heavy-duty water-cooled welding torch paired with an independent recirculating water cooler. Attempting to pull high currents with an air-cooled torch will rapidly overheat the barrel and melt the contact tip.
• Aluminum Package Compatibility Warning: This welding machine produces stunning aluminum pulse waveforms, but this relies heavily on smooth mechanical wire feeding. To weld aluminum alloys, never use standard carbon steel wire feeding mechanisms! You must install a dedicated aluminum wire feeder (such as the CMA series with U-groove rolls) and replace internal steel torch liners with Teflon aluminum liners. Otherwise, soft aluminum wire will buckle into a “Z” shape inside the liner, causing total waveform collapse.
• CBT-EX Gas Supply and Grounding Requirements: When utilizing the CBT-EX pure carbon dioxide low-spatter function, you must install a CO₂ flowmeter equipped with a heating element (such as the W-198 series) to prevent decompression freezing and gas starvation. Additionally, because CBT-EX technology requires precise short-circuit voltage sensing, the grounding clamp must be securely attached to clean, bare base metal free of paint or rust. Minor loop contact resistance will cause mainboard miscalculations and trigger spatter instability.
