WE M350L Low-Spatter Welder

OTC DAIHEN WE M350L Full-Digital CBT-EX Ultra-Low Spatter CO₂/MIG/MAG Welding Power Source In-Depth Technical Analysis

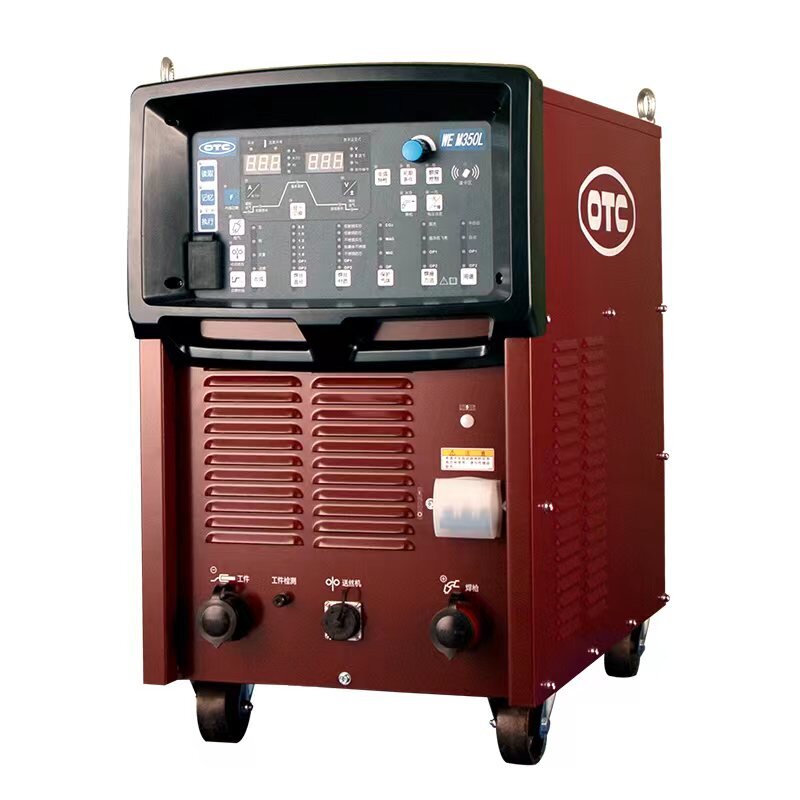

The OTC DAIHEN WE M350L is a new-generation ultra-low spatter full-digital MIG/MAG welding machine presented in a striking dark-red industrial coating. As an upgraded evolution of the celebrated WB-M350L, the WE M350L elevates core CBT-EX (DC Low Spatter Control Mode) algorithms to unprecedented heights. By executing microsecond-level current waveform control during short-circuit droplet detachment, it compresses CO₂ welding spatter to near-zero levels, achieving weld molding under economical pure CO₂ gas that rivals mixed-gas MAG welding. It serves as an essential “grind-free” cost reduction tool for automotive components, construction machinery, and shipyard piping root passes.

🌟 Core Technological Innovations & Three “Grind-Free” Industrial Applications

• CBT-EX Ultra-Low Spatter Control (Industry Disruptor): Conventional welders suffer explosive spatter during droplet short-circuit detachment. The WE M350L increases initial short-circuit current to accelerate droplet necking, then instantly cuts current before short-circuit rupture using a soft triangular waveform transition. This algorithm expands low-spatter performance into medium-to-high current zones, completely eliminating large-particle spatter.
• Ultra-Thin Automotive Seat Welding: In demanding 1.0mm automotive seat pipe-to-plate joints (running 130A to weld eight 20mm seams), verified field tests show the WE M350L generates a negligible 1.6g of spatter (compared to 5.0g on conventional machines). The resulting welds are clean and flat, completely preventing slide rail jamming caused by spatter adhesion.
• “Grind-Free” Construction Machinery Fabrication: When welding medium and thick plates, ultra-low spatter rates leave workpiece surfaces clean and spatter-free. Workshops can bypass time-consuming, consumable-intensive grinding and polishing operations and proceed directly to painting, slashing labor overhead and grinding disc consumption.
• High-Efficiency Root Pass Replacement in Shipyard Piping: In intricate internal pipe assembly within hulls, the CBT-EX mode’s stable weld pool control and spatter-free characteristics successfully replace low-efficiency TIG argon arc root welding. Not only is internal root bead formation smooth and clean, but welding efficiency is more than doubled.

📋 WE M350L Core Technical Specifications & Standard Configuration Matrix

Below is the detailed electrical, physical parameter, and original matching component table, rigorously unit-decoupled (strictly adhering to industrial factory specifications):

🔧 WE M350L CBT-EX Low-Spatter Process Field Configuration & Guide

• The Critical Role of Voltage Feedback Line (K5791G00): The WE M350L suppresses spatter by real-time microsecond detection of short-circuit arc voltage. This 5-meter voltage feedback line (K5791G00) must be securely clamped to the workpiece without disconnection or loose contact! If the clamping point is covered in grease or rust, or if the cable is broken, the machine loses feedback, rendering low-spatter control useless and causing severe wire stubbing and arc explosions.
• Wire Feeding Resistance: The Enemy of Low Spatter: CBT-EX control demands exceptionally smooth wire feeding speed. When tack-welding automotive parts or root-welding shipyard pipes, never bend or loop the torch cable (BT3510V) excessively! Any feeding hesitation caused by contact tip wear, liner dust accumulation, or excessive feed roll pressure disrupts triangular waveform rhythm, resulting in spatter ejections. Blow out torch liners daily with compressed air.
• Safety Configuration for Heated CO2 Flowmeters: If using economical liquid carbon dioxide (pure CO2) as shielding gas, you must equip a GH-2501-36V flowmeter with 36V AC heating functionality. Without heating, the decompression valve freezes and clogs, starving the weld pool of shielding gas and drawing in air to form dense honeycomb porosity.
