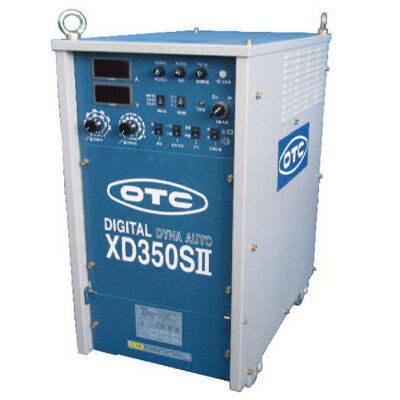

XD350SII Thyristor Welder

OTC DAIHEN XD350SII Microcomputer-Controlled Thyristor CO₂/MAG Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN XD350SII (Official Model: CPXDS-350II) is a 350A-class MIG/MAG welding machine that seamlessly merges the “extreme rugged durability of traditional thyristors” with the “precision digital control of microcomputer processing.” Engineered as a high-reliability power source specifically for mechanical fabrication, metal furniture, and structural steel engineering, it houses an overbuilt pure copper main transformer within a robust 121kg chassis. Governed by an internal microcomputer chip, the XD350SII eliminates the rough parameter tuning common to conventional thyristor machines, achieving synergic smart adjustment and constant penetration control—making it a dependable choice for severely dusty industrial workshop environments.

🌟 Core Heavy-Industrial Advantages & Microcomputer Smart Control Selling Points

• Microcomputer-Controlled Thyristor (Smart Dual Advantage): Perfectly unites the physical resilience of thyristor architectures—such as high surge resistance, dust immunity, and ultra-long service life—with the precision of microcomputer digital control. Even during input grid voltage fluctuations, the internal microcomputer rapidly adjusts the thyristor conduction angle to maintain absolute stability in welding current and voltage, eliminating spatter spikes.
• Synergic Adjustment & Constant Penetration Technology: Abandons cumbersome blind tuning. Welders simply set the desired current, and the microcomputer automatically matches the optimal arc voltage. Its exclusive “Constant Penetration Control” automatically compensates current when torch contact-tip-to-work distance changes due to hand trembling or uneven workpieces, guaranteeing completely consistent penetration depth across the entire weld seam.
• Integrated Remote Box & Wire Feeder Design: Engineered for medium-to-large workpiece fabrication where working areas span vast distances, the remote control panel is integrated directly onto the wire feeder. When welders operate far away from the power source, they can precisely control and fine-tune all welding parameters directly at the wire feeder without running back and forth, significantly boosting production efficiency.
• Overcurrent Safety Protection & Current-Limiting Programs: Features integrated high-agility protection circuitry that instantaneously cuts output during sudden short circuits. For factories enforcing rigorous quality control, the machine supports optional “Current-Limiting Programs” to lock the maximum current output threshold, preventing operators from unauthorized current boosting that causes coarse grain structures in the heat-affected zone.

📋 XD350SII (CPXDS-350II) Core Technical Specifications & Standard Configuration Matrix

Below is the detailed electrical, physical parameter, and original matching component table, rigorously unit-decoupled (strictly adhering to industrial factory specifications):

🔧 350A Thyristor Power Source Field Maintenance & Troubleshooting Guide

• Thermal Management Discipline for 50% Rated Duty Cycle: The XD350SII is rated at a 50% duty cycle. This means that if you operate at the peak current of 350A for continuous seam welding, after welding for 5 minutes, you must allow the machine to idle and fan-cool for 5 minutes. Disregarding the operational limits of the machine by forcing round-the-clock continuous welding at peak current will trap heat within the thyristor bridge and main transformer, accelerating insulation degradation.
• Multi-Core Cable Protection for the Integrated Remote Wire Feeder: This equipment integrates the remote control panel directly onto the top of the wire feeder. The combined cable (BKPT-3502) connecting the main power source to the wire feeder contains delicate signal transmission wires. When dragging cables across workshop floors, never allow heavy steel plates to crush or forklifts to run over this cable! Severing internal core wires will result in severe failures such as “Synergic adjustment failure with erratic voltage jumping” or “Inability to strike arc.”
• Mandatory Cleaning Rule for Thyristor Modules: While thyristor (SCR) modules are significantly rugged, they generate substantial operational heat and depend heavily on the bottom cooling fan for forced airflow across cooling aluminum fins. In workshops with heavy sheet metal grinding dust, you must blow out internal dust every six months using dry compressed air (≤0.15MPa). If metallic powder and grease bridge the gaps between cooling aluminum fins, thyristors will suffer thermal breakdown and explode.
