Abicor Binzel ABITIG® WH 220 W Compact Robotic TIG Torch System

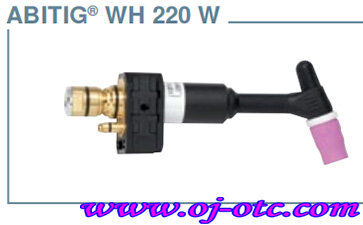

The Abicor Binzel ABITIG® WH 220 W is a compact, highly agile water-cooled TIG welding torch tailored for robotic automation where space clearance is restricted. Incorporating the proven WH quick-change neck mechanism, it allows seamless tool exchange while preserving absolute geometric TCP accuracy. Rated at 220 Amperes continuous duty, its optimized internal liquid cooling jacket protects delicate front-end consumables from overheating, ensuring flawless arc ignition and pristine weld seams on thin-to-medium gauge alloy assemblies.

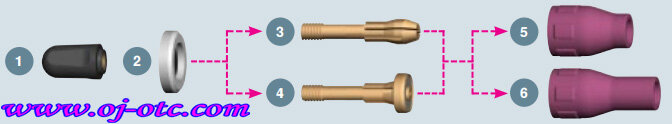

⚙️ Detailed Consumables & Part Number Matrix
| Configuration Type | Binzel Part Number |
|---|---|
| Standard Torch Neck Configuration | 781.1001 |
| Back Cap Type | Binzel Part Number |
|---|---|
| Standard Back Cap | 776.0053 |
| Insulating Ring Description | Binzel Part Number |
|---|---|
| Standard High-Temp Insulating Ring | 776.1043 |
| Tungsten Ø (mm) | Electrode Holder Part No. | Gas Diffuser Part No. |
|---|---|---|
| Ø 1.0 mm | 776.0061 | 776.0171 |
| Ø 1.6 mm | 776.0062 | 776.0172 |
| Ø 2.0 mm | 776.0067 | 776.0177 |
| Ø 2.4 mm | 776.0063 | 776.0173 |
| Ø 3.2 mm | 776.0064 | 776.0174 |
| Nozzle Category | Inlet Outer Ø A (mm) | Exit Inner Ø B (mm) | Total Length C (mm) | Binzel Part Number |
|---|---|---|---|---|
| Standard Short Nozzle | 16.8 mm | 6.5 mm | 26 mm | 777.0081 |
| 16.8 mm | 8.0 mm | 26 mm | 777.0082 | |
| 16.8 mm | 9.5 mm | 26 mm | 777.0083 | |
| 16.8 mm | 11.0 mm | 26 mm | 777.0084 | |
| Long Gas Nozzle | 16.8 mm | 6.5 mm | 36 mm | 777.2171 |
| 16.8 mm | 8.0 mm | 36 mm | 777.2172 | |
| 16.8 mm | 9.5 mm | 36 mm | 777.2173 | |
| 16.8 mm | 11.0 mm | 36 mm | 777.2174 |
🔧 Engineering & Maintenance Guide
- Compact Geometry Advantage: The WH 220 W is designed for intricate, tight-access welding. Program robot trajectories smoothly to prevent stressing the compact water hoses inside the cable assembly.
- O-Ring Maintenance: Regularly inspect the sealing O-rings on the quick-change neck connection. Damaged O-rings cause shielding gas turbulence (Venturi effect sucking in atmosphere), turning the tungsten electrode black.
- Diffuser Cleaning: Keep the ceramic nozzle and gas diffuser screens free from metallic vapors and spatter to ensure laminar argon flow.
📞 Contact for Global B2B Pricing & Technical Support
Anhui Oujie Automation Technology Co., Ltd. is your authorized supplier for genuine Abicor Binzel robotic welding torches and consumables. We guarantee 100% authentic equipment for your automated production lines.
⚡ Fast global shipping. Genuine guarantee. Professional automation support included.
