100-0956 Hall Sensor

In-Depth Technical Analysis: Genuine OTC DAIHEN 100-0956 High-Precision Hall Current Sensor (CS-40GEH) for WB Series Welders

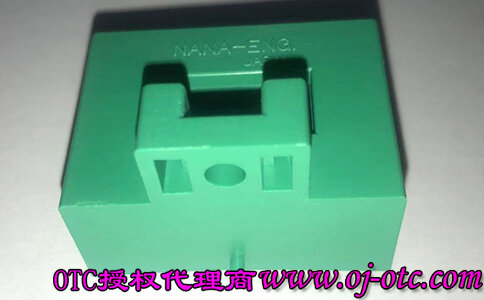

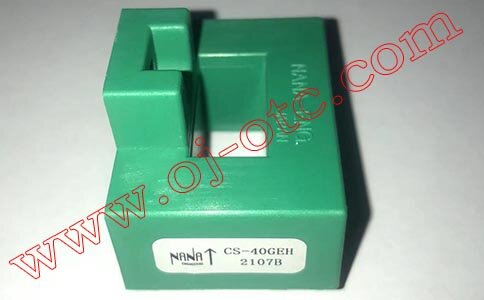

OTC DAIHEN 100-0956 High-Precision Current Detector (Hall Effect Sensor) is the core closed-loop current sensing unit custom-engineered for OTC digital inverter welding power sources, specifically the WB P400 and WB P500 series. In automated pulse MIG/MAG and low-spatter welding, the central control microprocessor requires instantaneous, highly accurate feedback of actual welding current across the main output circuit. Standard industrial current transformers or generic aftermarket sensors suffer from magnetic zero-point drift, sluggish signal response, and thermal instability, causing welding current output to wander or trigger system error codes. Manufactured by NANA-ENG under specification code CS-40GEH, the 100-0956 provides microsecond-level dynamic response and absolute magnetic zero stability, ensuring precise closed-loop current control and spatter-free arc performance.

🔍 Custom NANA-ENG Silicon & Microsecond Dynamic Response Advantages

• Closed-Loop Current Feedback “Eye”: Mounted on the primary DC output busbar, the 100-0956 measures several hundred amperes of welding current non-invasively through Hall effect induction. Its precision output signal allows the main logic PCB to adjust inverter PWM drive pulses instantaneously, eliminating output current drift during prolonged industrial shifts.
• Official NANA-ENG CS-40GEH Specification: Manufactured by NANA-ENG with OEM part code CS-40GEH, this sensor utilizes premium magnetically sensitive core materials. It maintains linear output accuracy across extreme workshop ambient temperature swings and resists electromagnetic interference from nearby high-frequency equipment without zero-point baseline drift.
• Microsecond-Level High Dynamic Response: In low-spatter short-circuit transfer and high-frequency double-pulse welding, current waveforms transition in microseconds. The 100-0956 captures transient short-circuit current peaks without signal lag, supporting OTC’s advanced inverter control algorithms to minimize spatter generation.

🛠 On-Site Sensor Replacement Guide & Avoiding Busbar Heating and Signal Noise

• 🚨 Critical Installation Rule: Torque Busbar Fasteners and Keep Core Window Clean! When installing 100-0956 around the main output copper busbar, ensure the busbar surface is clean and free from oxide films or metallic weld dust. **Tighten all copper busbar bolts to OEM torque specifications!** Loose busbar connections generate severe ohmic heat under high welding currents, thermally damaging the Hall sensor enclosure and causing signal distortion.
• Verify Shielded Harness Connections: The Hall sensor output cable is a shielded low-voltage data harness connecting directly to the main control board. Ensure the connector latch is fully engaged and keep the wiring route separated from high-voltage primary inverter cables to prevent EMI coupling.
• Perform Zero-Point Calibration After Replacement: After installing a new 100-0956 sensor, recommend accessing the welder service menu to run an automatic current feedback zero-point calibration, ensuring exact synchronization between displayed welding amperage and real arc output.

• Complete WB Series Welding Power Source Spare Parts BOM: Reliable pulse welding requires matching electrical hardware. To procure compatible main control PCBs, diode modules, and cooling fan motors (such as 100-1429), check our technical catalog for full BOM diagrams to ensure accurate part selection.
