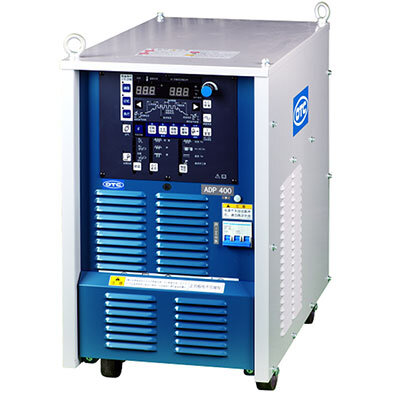

ADP400 AC/DC TIG & MMA Welder

OTC DAIHEN ADP400 Multi-Function AC/DC TIG & MMA Three-in-One Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN ADP400 is an industrial-grade, high-power AC/DC TIG and Manual Metal Arc (MMA) multi-process welding machine. Delivering a rated output up to 400A, this equipment masters deep penetration on thick aluminum assemblies while utilizing stepless AC frequency modulation to exert microscopic heat input control on ultra-thin metal sheets. Featuring pioneering “torch switch current control,” the ADP400 earned a stellar reputation in bicycle/e-bike aluminum frame manufacturing, automotive lightweight die-cast components, and premium stainless steel pipe fabrication.

🌟 Core Technical Heritage & Classic Process Selling Points

• Dynamic Torch Switch Current Control: Operating in awkward, restricted positions while wearing heavy gloves, welders adjust output current in real time simply by clicking the torch trigger switch. This eliminates stopping the arc to reach the power source panel, significantly optimizing weld quality across variable-gap and variable-section assemblies.
• Thin-Plate Master via Stepless AC Frequency: Supports wide-range frequency modulation in AC TIG mode. High-frequency AC output constricts arc cone density and directional stiffness, conquering historical challenges where wandering arcs fail to penetrate thin aluminum butt joints and fillet roots without causing edge burn-through.
• Three-in-One Versatility: Seamlessly integrates DC TIG (for carbon steel, stainless steel, and copper alloys), AC TIG (specializing in aluminum and magnesium alloys), and high-thrust DC MMA welding in a single host, lowering shop equipment procurement overhead.
• Superior Remote Arc Striking: Incorporates a formidable high-frequency (HF) arc starter and contact ignition logic, guaranteeing 100% crisp, instant ignition even when connected to ultra-long extension cables across expansive steel structures or pipeline job sites.

🏭 Classic Industrial Applications & Process Scope

Offering a wide current adjustment range (4A–400A) and superior arc concentration, the ADP400 served across demanding fabrication sites:

• Two-Wheeled Vehicles & Rail Transit: Aesthetic fish-scale welding for high-strength aluminum bicycle frames, motorcycle swingarms, and high-speed train interior fittings.
• Pressure Vessels & Thermal Piping Networks: High-quality single-sided welding with double-sided bead formation (TIG root pass) for premium stainless steel and alloy steel pressure piping.
• General Hardware & Automotive Repair: Emergency overlay repairs for cracked aluminum engine blocks and custom fabrication of automotive exhaust manifolds.

📋 ADP400 Core Technical Specifications Historical Archives

Below is the detailed electrical and physical parameter matrix covering the machine’s three-in-one multi-mode array, rigorously unit-decoupled (adhering to factory archives):

🔧 ADP400 Classic Aluminum Welder Maintenance & Upgrade Guide

• Mandatory Water-Cooling for High-Current AC Aluminum Welding: The ADP400 unleashes up to 400A in AC TIG mode. When welding medium-to-thick aluminum assemblies continuously, you must never use standard AW-17 air-cooled torches! Operating above 200A without coolant circulation rapidly melts internal copper power cables and destroys expensive control cables carrying torch switch current adjustment wiring. You must equip an industrial water cooler and upgrade to AW-18 or AW-26 water-cooled welding torches.
• High-Frequency (HF) Arc Starter Maintenance: After 5 to 8 years in service, spark gap generators responsible for high-voltage ignition pulses accumulate dust and suffer electrode erosion. If operators report hard ignition or hissing shielding gas without arc sparks, do not replace the motherboard prematurely! Contact our maintenance team to dress the internal discharge tungsten points and re-gap the spark distance to restore new-machine ignition responsiveness.
• Duty Cycle (25%) & Thermal Alarm Prevention: Because this model is calibrated with a 25% rated duty cycle at 400A full load (allowing 2.5 minutes of continuous welding per 10-minute cycle), it is optimized for tack welding and short seam repairs on thick plates. When deployed in continuous automated robotic cells, it easily triggers over-temperature protection alarms. For non-stop automation, we recommend upgrading to new-generation inverter models with 60%–100% duty cycles.
