EP500 Full-Digital Pulse MIG/MAG Welder

OTC DAIHEN EP500 Full-Digital Heavy-Duty Pulse CO₂ / MIG / MAG Welding Power Source In-Depth Technical Analysis

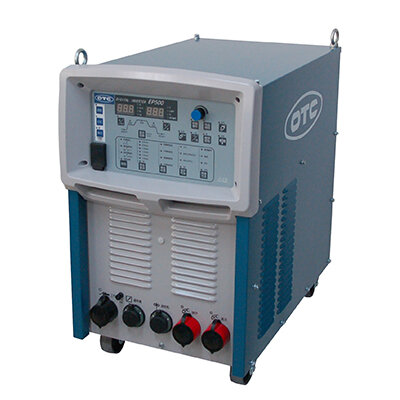

The OTC DAIHEN EP500 is a high-performance full-digital pulse MIG/MAG welding machine engineered for medium-to-thick plate heavy-current fabrication and automated workstation integration. Delivering a massive output of 500A DC and 400A pulse, the equipment boasts an exceptional 80% rated duty cycle in pulse operating mode. As a flagship power source in industrial heavy-duty waveform modulation, the EP500 comes standard with the CME-6401 4-roll all-wheel drive precision wire feeding unit equipped with optical encoder feedback. Utilizing ultra-high-speed current closed loops and droplet-by-droplet spray transfer control, the machine eliminates short-circuit explosive spatter in high-current MIG/MAG welding, producing full, dense, and textured weld seams on continuous thick-plate carbon steel and stainless steel assemblies.

🌟 Core Technical Advantages & Heavy Industrial Process Selling Points

• Optical Encoder Feedback Feeding (Hardware Linear Speed Closed Loop): Configured as standard with the CME-6401 heavy-duty wire feeder. Its internal 4-roll all-wheel drive motor shaft integrates a high-sensitivity optical encoder. Control chips sample linear wire feed speed thousands of times per second. Even during continuous 500A heavy welding where torch cables are twisted and resistance spikes, the controller automatically boosts voltage to compensate torque, ensuring absolute feeding stability and eliminating low-frequency welding stutter.
• Advanced Pulse Waveform Algorithms (High-Current Clean Welding): Engineered for high-strength continuous full-penetration welding on stainless steel and carbon steel. The inverter compresses pulse spray energy, ensuring regular, dense droplet transfer that slashes ignition and welding spatter by over 90% compared to conventional 500A welders. Post-weld surfaces are virtually slag-free, drastically cutting cleaning labor.
• Stepless Digital Arc Characteristic Control: The control panel offers multi-step digital adjustments from “stiff” to “soft” arc characteristics. Whether executing deep-penetration continuous seam welding on heavy construction machinery plates or root welding on pressure vessels with irregular assembly gaps, operators can dial in superior bridging capability and handling ergonomics.
• Digital Soft-Touch Panel & 100-Group Parameter Memory: Features a durable micro-switch soft-touch control panel. Supports locking and saving up to 100 sets of validated process parameters across stainless/carbon steel, wire diameters, and gas mixtures. Line welders can recall optimal ignition and current settings with a single button press, guaranteeing high product repeatability.

🏭 Typical Heavy Industrial Integration & Applications

Utilizing pure copper heavy industrial components and superior digital waveform surge resistance, the EP500 remains active across major heavy sectors:

• Heavy Steel Structures, Bridges & Shipbuilding: High-strength continuous pulse MAG welding for thick H-beams, girders, and ship decks, maintaining exceptionally high NDT qualification rates.
• Pressure Vessels, Boilers & Petrochemical Heavy Duty: Flawless high-current continuous pulse MIG overlay and capping for stainless steel cylinders and specialized heat-resistant alloys.
• Automated Robotic Arms & Custom Welding Machines: Utilizing original 10-pin high-shielding control cables, it serves as a robust low-level current source for large robotic welding cells.

📋 EP500 Official Core Technical Specifications & Historical Configuration Matrix

Below is the detailed electrical, wire feeder, and consumable configuration table, rigorously unit-decoupled (strictly adhering to historical factory archives):

🔧 500A-Class Digital Inverter Welder Maintenance & Troubleshooting Guide

• Degreasing CME-6401 4-Roll Encoder Assemblies: The CME-6401 relies on micro optical encoders at the rear of the servo motor to maintain digital linear speed closed loops. If operating in harsh environments (e.g., adjacent to casting polishing bays with heavy oil mist), oil-laden conductive metallic dust infiltrating the rear housing obstructs encoder collimation detection. Symptoms include cyclic stuttering wire feed, violent arc stutter, and contact tip burnback. Maintenance teams must enforce a mandatory 6-month cleaning schedule to degrease and blow out the rear motor shroud.
• Thermal Load Limits for the WT5000-SBD Air-Cooled Torch: Standard factory delivery includes the WT5000-SBD heavy-duty air-cooled torch. While boasting an 80% duty cycle under 400A pulse operation, when utilizing 500A DC standard gas shielded welding for heavy structural long seams, its rated duty cycle drops to 60% (welding 6 minutes requires 4 minutes of rest). Instruct operators never to force continuous 24/7 automated welding above thermal limits, as copper torch necks oxidize rapidly, seizing contact tip threads and melting insulation handles.
• Power Grid Capacity Requirements for 500A Multi-Machine Setups: A single EP500 operating at full DC load draws an input capacity of 24.2kVA. When deploying multiple units in large steel fabrication shops, ensure busbar power supply cables are at least national standard 35mm² pure copper conductors, paired with individual circuit breakers rated at 125A or higher. If grid voltage drops by over 15% during simultaneous multi-machine arc strikes, digital undervoltage protection circuits will trigger alarms, disrupting continuous assembly line pacing.
