FD19RB-3015 Teach Pendant Cable

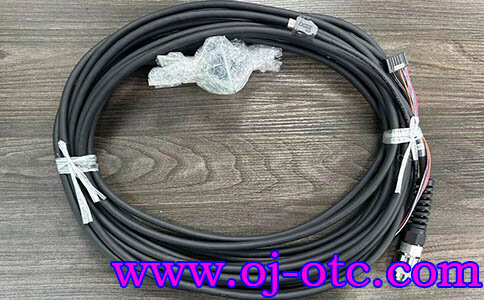

Original OTC DAIHEN FD19 Series Teach Pendant Cable FD19RB-3015 (15m)

OTC DAIHEN FD19RB-3015 Teach Pendant Cable is an OEM high-flexibility communication cable engineered specifically for OTC DAIHEN’s latest FD19 series industrial robots and teach pendants (such as the FD19TP-DSJNC). With a standard length of 15 meters, it provides an expansive operating radius for automated robotic welding cells, accommodating long-distance dragging and dynamic programming tasks. Serving as the vital data and power bridge between the teach pendant and the robot control cabinet, this genuine OEM cable features advanced double shielding and high-frequency flex resistance to ensure zero communication dropouts and prevent runaway robot hazards during programming and operation.

⚠️ Model Upgrade & Replacement Note: The legacy teach pendant cable model L23701E00 has been officially discontinued and upgraded by OTC DAIHEN to FD19RB-3015. Both models are 100% compatible in underlying system protocol and connector interfaces, allowing seamless plug-and-play replacement.

🌟 Core Advantages & Upgraded Design

• Next-Generation Quick-Connect Interface: Replaces the cumbersome threaded locking mechanism of the legacy FD11 era. The FD19RB-3015 features an industrial push-pull quick-connect design that locks instantly without tools, drastically reducing downtime during equipment maintenance and emergency repairs.
• Ultra-Flexible Abrasion-Resistant Jacket: Encased in a specialized oil-resistant, anti-aging, and wear-resistant polymer outer sheath. The internal stranded core architecture is engineered specifically for continuous dragging, offering exceptional tensile strength and bending cycle life against rough workshop floors and mechanical wear.
• Military-Grade EMI Shielding: Robotic welding cells generate intense high-frequency arc initiation and electromagnetic noise. This cable incorporates a high-density tinned copper braided shield combined with aluminum foil double shielding, guaranteeing crystal-clear teach pendant displays with zero data packet loss or command latency.

📋 Technical Specifications & Compatibility Matrix

🔧 Teach Pendant Cable Maintenance & Operational Guidelines

• Prevent Sharp Bends & Vehicle Crushing: Despite its high flexibility, maintain a coiling radius greater than 30 cm when storing or hanging the cable. Never allow forklifts, carts, or heavy machinery to run over the cable, as internal micro-conductors can sever invisibly, causing intermittent communication faults.
• Inspect & Clean Connector Pins: While quick-connect plugs simplify handling, unplugged connectors can attract airborne iron dust and spatter. Always inspect connector sockets for foreign debris before insertion to avoid bending pins or shorting control cabinet motherboards.
• Protect Against Hot Spatter & Chemicals: Although the outer sheath is industrial-grade and oil-resistant, continuous submersion in aggressive cutting fluids or direct contact with molten welding spatter will degrade polymer insulation over time. Utilize flame-retardant cable covers in extremely harsh welding cells.
