L10270L00 Encoder Cable

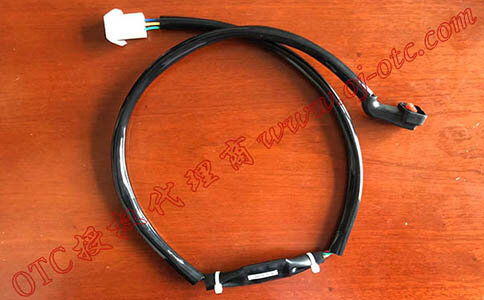

Original OTC DAIHEN L10270L00 Wire Feeder Encoder Cable

OTC DAIHEN L10270L00 Encoder Cable acts as the critical digital neural link within robotic wire feeding control systems. Designed specifically to connect OTC DAIHEN AF4001 robotic wire feeder motors to servo controllers, it transmits high-frequency motor encoder pulse signals in real time across severe welding electromagnetic environments. The robot controller relies on these lossless data streams to execute microsecond closed-loop control over wire feed rates, guaranteeing absolute arc stability and minimal spatter generation.

🔄 Model Upgrade & Installation Architecture

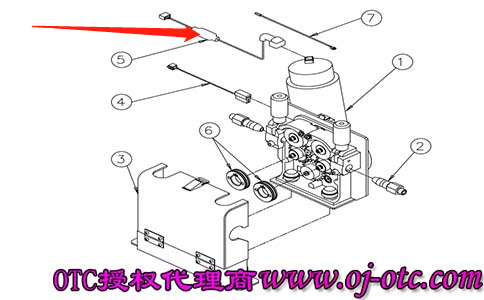

The red arrow in the schematic above indicates the physical connection port for the L10270L00 cable at the rear of the AF4001 wire feeding assembly. ⚠️ Purchasing & Upgrade Notification: The legacy OEM encoder cable model L7810L00 has been permanently discontinued. The L10270L00 is the official upgraded replacement, featuring 100% identical physical connectors and electrical communication parameters for direct plug-and-play replacement without modifying robot system software or controller parameters.

🌟 Core Anti-Interference Technology & Cable Characteristics

• Military-Grade Double EMI Shielding: High-power welding arcs generate intense electromagnetic interference (EMI). This cable incorporates a high-density tinned copper braided shield combined with aluminum foil double shielding to isolate high-frequency electrical noise, preventing wire feeding speed surges or sudden feed halts caused by corrupted feedback signals.
• Drag-Chain Grade High Flexibility: The outer sheath utilizes specialized industrial polyurethane (PUR), providing exceptional resistance to workshop oil, abrasion, and high-frequency mechanical bending. It effortlessly endures continuous twisting and articulation inside corrugated protective conduits above Robot Axis 3.
• OEM Aviation Connectors: Pre-terminated with genuine Japanese precision keyed aviation connectors, featuring gold-plated pins to maintain low contact resistance for micro-current pulse transmission and rapid field installation.

🔧 Field Wiring & Troubleshooting Guide

• Never Bundle Directly with Power Cables: When routing cables across robotic cells, avoid bundling the L10270L00 encoder cable tightly against 500A welding torch power cables using cable ties. Powerful alternating magnetic fields can penetrate shielding layers under direct physical contact; maintain adequate separation and loose routing inside protective conduits.
• Avoid Forceful Unplugging: If an encoder communication alarm occurs (such as Err 40), loosen the locking rings on the aviation connectors before removing. If pins exhibit bending or retraction due to vibration or improper insertion, replace the entire cable assembly immediately rather than straightening pins with pliers, which risks shorting controller motherboard ICs.
