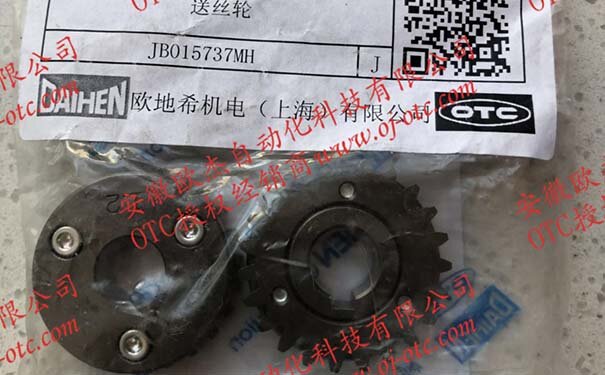

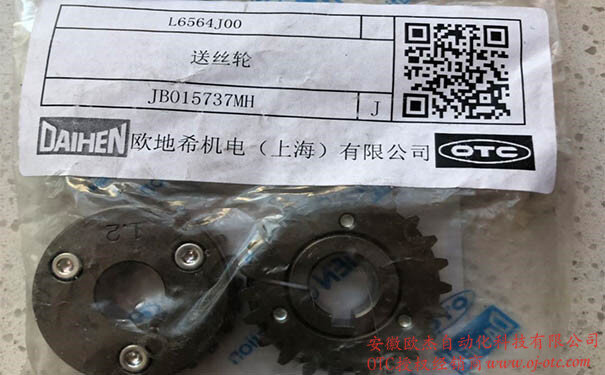

OTC DAIHEN L6564J00 Wire Feed Drive Roll (Wire Feeder Gear) is the primary mechanical transmission consumable responsible for applying direct physical driving force to welding wire in robotic and semi-automatic Gas Metal Arc Welding (GMAW/MIG/MAG) wire feeding systems. Mounted directly onto the wire feeder motor output shaft, it utilizes precision-machined grooves to engage welding wire mechanically, converting motor rotational torque into smooth, linear wire forward thrust. In automated continuous welding operations, the concentricity, groove tolerance, and surface hardness of the drive roll dictate wire feeding speed uniformity, serving as the hardware foundation eliminating arc length fluctuation and weld spatter.

🌟 Material Craftsmanship & Precision V-Groove Architecture

• Induction-Hardened Alloy Steel: Welding wire (especially solid carbon steel wire) exhibits high surface hardness, exerting severe abrasive wear on drive rolls during high-speed rolling contact. The authentic L6564J00 is forged from premium Japanese high-carbon alloy steel subjected to rigorous induction surface hardening (Hardening). Providing a Rockwell hardness (HRC) significantly higher than standard carbon steel, it withstands heavy mechanical clamping pressure without groove deformation or slippage over tens of thousands of meters of wire feeding.
• Precision Micron V-Groove Geometry: As shown in the detailed photograph above, the outer rim features high-precision V-shaped grooves. This geometry enables hard carbon steel wire (typically 1.2mm or 1.4mm diameters) to achieve stable multi-point line contact under pressure. Compared to rough U-grooves found in imitation parts, the OEM V-groove delivers immense frictional driving force under minimal spring pressure. This prevents wire slippage and copper flaking while avoiding excessive clamping force that crushes wire into an oval shape, which can jam contact tips.
• Concentric Shaft Alignment: The drive roll bore and keyway match the wire feed motor output shaft to micron tolerances. Preventing radial runout during high-speed rotation, this smooth output eliminates pulsed wire feeding stutter, curing wavy weld bead surface profiles.

🔧 Field Maintenance & Troubleshooting Guide for Wire Slippage

• Never Over-Tighten Pressure Arms to Compensate for Slippage: When wire feeding stutters or slips on the workshop floor, operators frequently over-tighten pressure arm adjustment springs. **This is a destructive practice.** Excessive clamping force crushes round welding wire into an oval cross-section, clogging wire guide conduits and contact tips while accelerating V-groove wear on the L6564J00. Correct protocol: inspect groove depth; if flattened, flip the roll to utilize the secondary groove (or replace the roll if both sides are worn) and verify that the wire liner is free of obstructions.
• Monitor & Clean Copper Flake Buildup: Copper shavings and iron dust shed from low-quality welding wire frequently accumulate at the bottom of V-grooves. This debris elevates the wire out of proper groove contact, causing recurrent slippage. Maintenance teams should clean drive roll grooves thoroughly using a wire brush or compressed air whenever replacing wire spools or drums.
• Synchronized Flipping & Set Replacement: Drive rolls are high-frequency consumables typically featuring dual grooves. When one side wears out, flip the roll to utilize the fresh groove. **For dual-drive (4-roll) wire feeding systems, technicians must flip or replace all 4 drive rolls simultaneously.** Mixing worn and new rolls creates rotational speed differentials between upper and lower rolls, bending welding wire into bird-nests (Bird-nesting) and jamming the feeding mechanism.
