L6611D01 Wear-Resistant Wire Liner

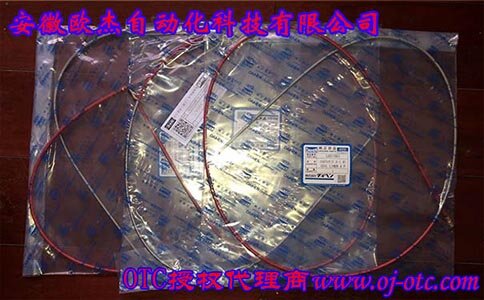

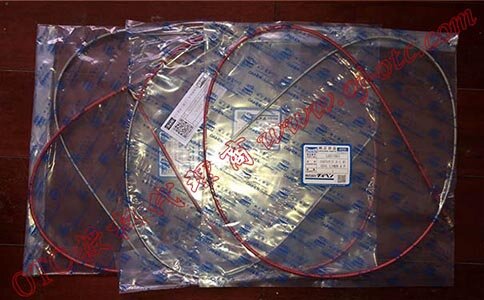

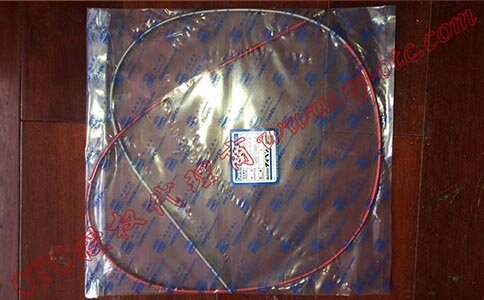

Original OTC DAIHEN L6611D01 Wear-Resistant Wire Liner (1.2-1.6mm)

OTC DAIHEN L6611D01 Wire Liner is a high-precision consumable inside industrial automated robotic welding systems that directly governs arc ignition quality and droplet transfer stability. Imported directly from Japan, this core component is custom-engineered for 1.2mm to 1.6mm diameter solid carbon steel, flux-cored, and alloy steel welding wires. Operating as the central internal liner within rigid and flexible wire delivery assemblies, it runs throughout the entire outer protective conduit to establish an ultra-low friction pathway for high-speed, continuous feeding of large-diameter welding wire.

🔍 Precision Clearance Sizing & Core Technical Advantages

• Rigorously Calibrated Internal Bore: In automated welding, 1.2mm to 1.6mm wires exhibit high structural stiffness and mechanical spring-back. The L6611D01 maintains strict internal bore tolerances that provide adequate physical clearance for minor wire bending while preventing wire from coiling into a serpentine pattern inside the tube. This structural precision guarantees wire exits the contact tip smoothly without periodic mechanical fluttering.
• High-Rigidity Polymer Metallurgy: Large-diameter welding wire (especially flux-cored wire) presents a rougher surface texture. The L6611D01 utilizes an OTC DAIHEN proprietary high-rigidity polyurethane polymer compound that dramatically outperforms standard aftermarket liners in abrasion and cutting resistance. Operating under high-dynamic, high-volume wire feeding, the inner wall resists grooving from moving wire, preventing wire jams caused by internal liner scoring.
• Source Control of Welding Defects: When wire liners suffer localized wear or inconsistent friction resistance, wire feeders experience microsecond speed fluctuations that destabilize instantaneous welding current. This causes arc fluttering, multiplies spatter generation, and risks lack of fusion or porosity in the weld pool. Installing genuine OTC DAIHEN L6611D01 liners is foundational for maintaining high ultrasonic NDT qualification rates on automated production lines.

🔧 Field Installation Disciplines & Downtime Prevention Guide

• Wire Diameter Matching (Never Mix Sizes): L6611D01 is dedicated exclusively to 1.2-1.6mm welding wire. Never install this liner if your production line operates with 0.8mm or 1.0mm fine wire, as excessive clearance causes thin wire to buckle and wander inside the oversized bore. For fine wire diameters, select the dedicated OEM L6611D02 wire liner to maintain proper wire-to-conduit tolerance matching.
• Prevent Sharp Bends & Maintain Smooth Curves: When inserting this liner into outer hose assemblies or cable drag chains, follow the natural curvature of the conduit and avoid sharp, localized bends. Large-diameter wire possesses significant bending stress; any sharp angle acts as a high-friction resistance point that instantly overloads wire feeder motor current and triggers machine halts.
• Physical End-Face Chamfering: If trimming the liner on-site to match specific robotic torch lengths, always use dedicated OEM tubing shears rather than side cutters or hacksaws. After cutting, deburr and chamfer the internal bore edge using a reamer to form a smooth, funnel-shaped entry. This prevents sharp cut edges from shaving welding wire during feeding and causing severe iron shaving buildup.
