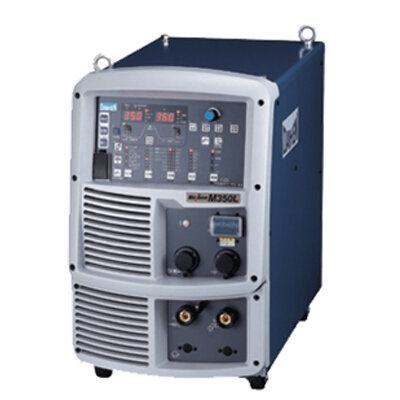

OTC DAIHEN M350L (WB-M350L) Full-Digital Welbee CBT-EX Ultra-Low Spatter Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN M350L (Official Model: WB-M350L) is a highly acclaimed core model in OTC’s Welbee “ultra-low spatter” lineup. Powered by dedicated Welbee LSI processors and exclusive CBT-EX (Controlled Bridge Transfer – Extra) DC low-spatter control technology, this equipment defies the physical laws of heavy spatter in pure CO₂ welding. It achieves exceptionally clean weld bead molding comparable to argon-mixture MAG welding without requiring costly gas mixtures. Combining 350A output reliability with a robust robotic communication architecture, the M350L serves as a celebrated “grind-free” tool across automotive parts, structural steel, and thin-plate fabrication industries.

🌟 Core Digital Advantages & Grind-Free Process Selling Points

• CBT-EX Ultra-Low Spatter Control: At the short-circuit transfer instant in CO₂ welding, the LSI processor rapidly contracts current with high-frequency precision, suppressing large-particle spatter ejections during droplet rupture. This not only saves wire and shielding gas but also eliminates labor-intensive post-weld spatter chipping and grinding, directly lowering overall manufacturing overhead.
• Wide-Range Arc Stability Across All Currents: Supported by the robust Welbee control architecture, the M350L maintains exceptional arc stiffness and stability whether running ultra-low current root passes on thin sheets or executing continuous 350A full-load seam welds.
• Robotic Connectivity & High-Speed Automated Welding: Natively integrates with OTC industrial robots. During high-speed automated welding (exceeding 1m/min), waveform feedback forcefully suppresses arc voltage fluctuations, ensuring uniform weld edges without undercutting. Supports inching current adjustments and arc spot welding to accelerate assembly line cycle times.
• USB Data Visualization & Traceability: Standard front-panel industrial dustproof USB interface supports exporting and cloning 100 sets of welding parameters. Quality control personnel can easily record and trace operational welding data across individual machines, building a standardized digital smart factory.

📋 M350L (WB-M350L) Core Technical Specifications & Standard Configuration Matrix

Below is the detailed electrical, physical parameter, and low-spatter matching component table, rigorously unit-decoupled (strictly adhering to industrial factory specifications):

🔧 M350L CBT-EX Low-Spatter Process Field Configuration & Guide

• Wire Feeder Exclusivity for Low Spatter: Please pay critical attention: the M350L ships standard with the CMV-7402 dedicated low-spatter wire feeder! Its motor calibration and feedback responsiveness are specifically reinforced to match microsecond short-circuit waveform slicing from the mainboard. On the workshop floor, never substitute standard CM-7402 wire feeders; sluggish motor response causes waveform confusion, triggering wire stubbing, arc outages, and spatter spikes.
• Heated CO2 Flowmeter Requirement: To unleash the full spatter-eliminating power of CBT-EX technology, shielding gas flow must remain steady at high volumes. If utilizing economical liquid CO2 gas, you must install a W-198 series flowmeter equipped with a 220V/36V heater! Without active heating, rapid gas decompression freezes the regulator valve, starving the weld pool of shielding gas and forming dense honeycomb porosity.
• Electromagnetic Shielding in Robotic Integration: When networking the M350L with automated robotic arms or custom machines, because Welbee LSI waveform control and communication operate at ultra-high frequencies, main control cables must utilize shielded wiring separated from high-current welding power cables. Never bundle them tightly over long runs; magnetic field interference causes pulse command packet loss and triggers robotic “Arc Interruption” errors.
