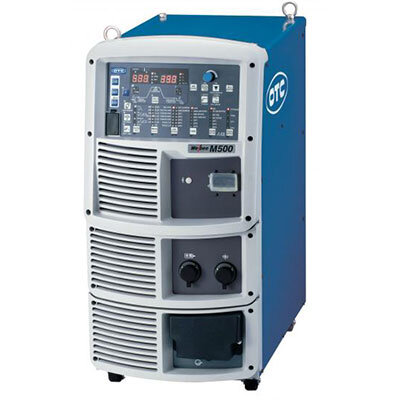

OTC DAIHEN M500 (WB-M500) Welbee LSI Full-Digital Smart Inverter Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN M500 (Official Model: WB-M500) is the flagship model of OTC’s latest Welbee industrial platform. Powered by an ultra-high-speed LSI computing chip developed specifically for arc welding, it delivers extraordinary waveform control precision. Its most revolutionary breakthrough is the exclusive CBT-EX (Controlled Bridge Transfer – Extra) ultra-low spatter control technology, which enables welding with economical pure CO₂ shielding gas to achieve spatter levels comparable to or even surpassing expensive argon-mixture MAG welding. Combined with an absolute 100% continuous duty cycle and a native architecture optimized for robotic communication, the M500 serves as the ultimate tool for cost reduction and efficiency boosting in heavy automation and automotive parts production lines.

🌟 Core Technological Innovations & Robotic Automation Selling Points

• CBT-EX Ultra-Low Spatter Technology (Industry Disruptor): Conventional CO₂ welding unavoidably generates substantial spatter. The M500 utilizes its Welbee LSI processor to rapidly contract welding current with microsecond precision at the exact instant of droplet short-circuit necking. Even under 100% pure CO₂ shielding, spatter volume is slashed by over 80%! Enterprises no longer need to purchase costly Ar+CO₂ mixed gas, while simultaneously eliminating massive labor costs associated with post-weld spatter grinding and cleaning.
• Seamless OTC Industrial Robot Docking: Natively embeds robot-grade high-speed communication protocols for effortless automation integration. It supports robot-specific high-frequency intelligent actions such as “torch switch current inching adjustment” and “high-speed arc spot welding.” During automated high-speed welding exceeding 1m/min, it powerfully suppresses arc voltage fluctuations, leaving weld beads as uniform as mechanical engravings.
• 100% Extreme Duty Cycle Endurance: Beyond its digital intelligence, this is a rugged industrial powerhouse engineered for grueling workloads. A formidable 500A peak current paired with a 100% rated duty cycle enables 24/7 continuous deep-penetration seam welding in heavy steel structure plants and bridge fabrication workshops without overheating.
• USB Data Traceability & Smart Quality Control: Equipped with an industrial waterproof and dustproof USB interface on the front panel. Quality engineers can insert a flash drive to export long-term welding current/voltage logs and alarm error histories, or clone a single machine’s “perfect parameter set” across dozens of workshop welders for standardized digital fleet management.

📋 M500 (WB-M500) Core Technical Specifications & Standard Configuration Matrix

Below is the detailed electrical, physical parameter, and original matching component table, rigorously unit-decoupled (strictly adhering to industrial factory specifications):

🔧 M500 Full-Digital Robotic Power Source Field Maintenance & Troubleshooting Guide

• Dustproof Rule for the Industrial USB Port: The M350/M500 front panel integrates a convenient USB interface. In heavy industrial environments filled with grinding iron dust, you must keep the waterproof and dustproof rubber cap tightly sealed over the USB port whenever a flash drive is not actively plugged in! If conductive metallic particles infiltrate the interface and short-circuit the 5V power pins, it can cause screen blackouts or permanently damage the Welbee mainboard.
• Robotic Wiring & High-Frequency Interference Immunity: When integrating the WB-M500 with industrial welding robots, because the Welbee digital processor operates at ultra-high waveform sampling and feedback frequencies (ultra-high-speed LSI processing), robotic communication cables must utilize original factory high-shielding twisted-pair wiring! Never bundle them parallel over long distances with workshop high-voltage power lines or thick welding cables. Strong electromagnetic interference will disrupt pulse wire-feeding commands, triggering frequent “Arc Interruption” errors on the robot controller.
• Gas Flow & Grounding Requirements for CBT-EX Low Spatter Mode: To unleash the full low-spatter capability of CBT-EX technology, ensure two critical operational conditions: First, shielding gas flow must be maintained steadily at 15-20 L/min, and the flowmeter heater must be plugged in and operating; Second, the workpiece grounding clamp (the earth terminal of BKPT-6002) must make clean, bare-metal contact with the workpiece. Even minor contact resistance drops will impair the LSI chip’s microsecond detection of short circuits, causing spatter suppression to fail.
