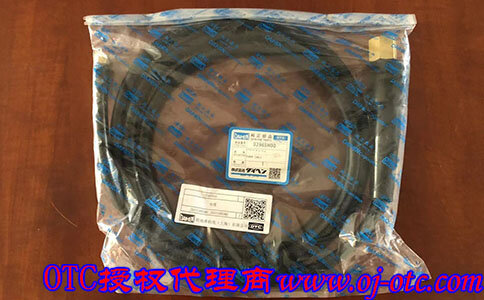

U2965H00 Welding Torch Cable

In-Depth Technical Analysis: Genuine OTC DAIHEN U2965H00 High-Flexibility Coaxial Water-Cooled Composite Cable for TIG/MIG Torches

OTC DAIHEN U2965H00 Coaxial Water-Cooled Composite Cable is the core power-and-cooling transmission artery custom-engineered for legacy OTC high-power water-cooled aluminum welding torches. In automated aluminum MIG and AC/DC TIG welding, continuous high AC welding currents generate substantial resistive heating within torch power cables. Conventional air-cooled cables or standard aftermarket water-cooled hoses suffer from stiff handling, rapid internal copper oxidation, and pressure hose bursts under continuous industrial duty cycles. Integrating a large-cross-section oxygen-free copper braided conductor with an internal pressurized cooling water channel, U2965H00 maintains low electrical resistance and cool torch operation during extended full-load welding while providing superior wrist flexibility.

🔍 Coaxial Water-Cooled Architecture & Oxygen-Free Copper Braiding Advantages

• All-in-One Power and Water Cooling Channel: U2965H00 utilizes an advanced coaxial composite design where cooling water flows directly over the internal braided copper power conductor. This direct-contact fluid exchange removes resistive heat instantaneously, allowing the torch to operate continuously at high currents without thermal discomfort for operators or heat degradation of insulation layers.
• Ultra-Fine Japanese Oxygen-Free Copper Braiding: The internal conductor consists of thousands of precision-woven, ultra-fine Japanese oxygen-free copper strands. This construction achieves minimal electrical resistance and high flexibility, significantly reducing wrist fatigue during manual manipulation or cable bundle stiffness in automated robotic arms.
• Heat-Resistant Flame-Retardant Rubber Jacket: The outer protective casing is fabricated from industrial-grade synthetic rubber formulated for high abrasion and thermal resistance. It withstands mechanical friction against sharp shop edges, resists hot metal spatter, and prevents internal pressure hose expansion or bursting under high water coolant pressures.

🛠 On-Site Cable Replacement Guide & Avoiding Coolant Leaks and Electrical Flashovers

• 🚨 Critical Maintenance Rule: Never Operate Water-Cooled Cables Without Coolant Circulation! Before striking an arc with U2965H00 installed, technicians must verify that the water-cooling recirculator is turned on and delivering adequate flow and pressure. **Never weld for even a few seconds without active coolant circulation!** Because coaxial cables rely on flowing water to dissipate heat from compact copper bundles, dry welding melts the internal rubber tube within seconds, causing catastrophic water leakage and high-voltage electrical flashovers.
• Use Non-Conductive Industrial Coolant: Never fill water cooler reservoirs with untreated tap water or standard automotive antifreeze. Mineral deposits and conductive ions in tap water cause electrolysis and rapid corrosion of copper connectors inside U2965H00. Use only OEM deionized, non-conductive welding coolant.
• Inspect Hose Barb Clamps and O-Ring Fittings: When securing U2965H00 to torch bodies and water cooler manifolds, tighten crimp clamps to OEM torque specifications. Replace damaged O-rings immediately to prevent coolant drips from entering electrical control connectors.

• Complete OTC Water-Cooled Welding Torch Spare Parts BOM: Reliable water-cooled torch operation requires matching plumbing and hardware. To procure compatible torch heads, water-cooling fittings, and power adapters, check our technical catalog for full BOM diagrams to ensure accurate part selection.
