W-L02034 RV Reduction Gear

OTC DAIHEN Genuine AII-B4 / FD-B4 Robot Axis 4 Precision RV Reduction Gear Set W-L02034 In-Depth Analysis

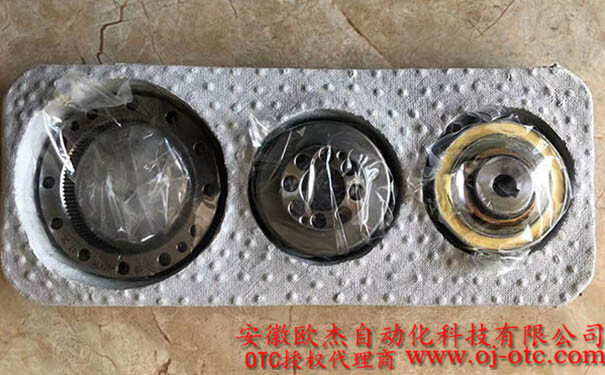

OTC DAIHEN W-L02034 Industrial Robot Axis 4 Precision Reduction Gear Set is a heavy-duty cycloidal pin-wheel RV transmission assembly (supplied as a complete 3-piece matched set) engineered specifically for the 4th axis (forearm rotational posture axis) on OTC AII-B4 and FD-B4 series industrial welding robots. Paired seamlessly with matching W-L02148 AC synchronous servo motors, this authentic Japanese imported reduction gear set transforms high-speed motor rotation into immense torque output with micron-level concentricity. Serving as the vital mechanical backbone dictating forearm rotational rigidity and microscopic geometrical precision, utilizing genuine W-L02034 reducers is essential for eliminating manipulator arm vibration, eliminating mechanical backlash, and maintaining absolute tool center point (TCP) trajectory repeatability during continuous automated welding operations.

🌟 Dedicated Model Pairing & Cycloidal RV Architecture

• Dedicated OEM Engineering for AII-B4 & FD-B4 Axis 4: Engineered specifically to match the kinematic loads and mounting geometry of OTC AII-B4 and FD-B4 robotic manipulators, the W-L02034 3-piece set couples perfectly with W-L02148 servo motors. This dedicated pairing eliminates mechanical noise, eccentric wear, and concentricity mismatch common in generic aftermarket reducers.
• Two-Stage Cycloidal Pin-Wheel RV Transmission: Integrating an industrial RV transmission mechanism combining spur gear reduction with cycloidal pin-wheel reduction, multiple pin-wheels engage simultaneously under load. This elevates bending and torsional rigidity several-fold, effortlessly resisting immense reverse inertia stresses generated during rapid acceleration, emergency braking, or torch collisions.
• Sub-Arcminute Backlash & Crossed Roller Bearings: Factory precision-lapped to achieve sub-arcminute reverse backlash, the reducer eliminates mechanical hysteresis during continuous direction reversals. Integrated heavy-duty crossed roller bearings directly absorb tilting moments, axial thrust, and radial shear forces from all directions, streamlining joint assembly and extending service life.

🔧 Field Installation, Grease Compatibility & Zero-Point Mastering Guide

• Strictly Prohibit Mixing Incompatible Lubricating Greases: Precision RV reducers demand rigorous lubrication standards. During routine maintenance or gear replacement, technicians must use only OEM-specified transmission greases (such as Molywhite RE00 extreme-pressure grease or 100-0624 grease). Never mix general-purpose lithium greases or bearing oils into the unit. Mixing incompatible chemical base oils causes immediate separation and precipitation, hardening the grease into solid lumps or diluting it until it leaks out, causing severe dry friction and permanent pin-wheel wear within weeks.
• Mandatory Multi-Stage Diagonal Bolt Tightening Protocol: Flange mounting bolts securing the reduction gear to the servo motor and manipulator arm structure must be tightened using a calibrated digital torque wrench. Never use pneumatic impact wrenches blindly. Observe OEM standard torque specifications strictly, tightening bolts in a crisscross star sequence across 3 progressive stages (30% -> 70% -> 100%). Uneven bolt tension distorts the outer ring by micron tolerances, disrupting internal gear meshing and causing overheating, abnormal vibration, and drive alarms.
• Mandatory Absolute Zero-Point Mastering Post-Installation: Mechanical disassembly permanently alters the absolute encoder phase of the joint. **Never execute existing automated welding trajectory programs immediately upon power-up.** A qualified automation engineer must operate the teach pendant to perform **”Joint Mechanical Zero-Point Calibration (Calibration Data Sync)”**. After resetting absolute encoder starting values, jog the robot at ultra-low manual speed along the workspace periphery to verify tool fixture alignment before resuming automated production.

• Expedited Worldwide Dispatch & Maintenance Support: For automated manufacturing facilities experiencing production halts due to joint reduction gear fracture or impact damage, Anhui Oujie Automation provides rapid international courier dispatch directly from stock, along with remote technical guidance for mechanical assembly and zero-point mastering.
• Long-Term Spare Parts Storage Guidelines: For enterprise clients warehousing precision RV reducers as strategic emergency spares, store units horizontally on dedicated shelving in a temperature-controlled, dry, vibration-free environment. Never remove OEM moisture-proof wrapping until installation to prevent internal rolling elements and cycloidal gear teeth from oxidation or corrosion.
