W-L02641 Servo Motor

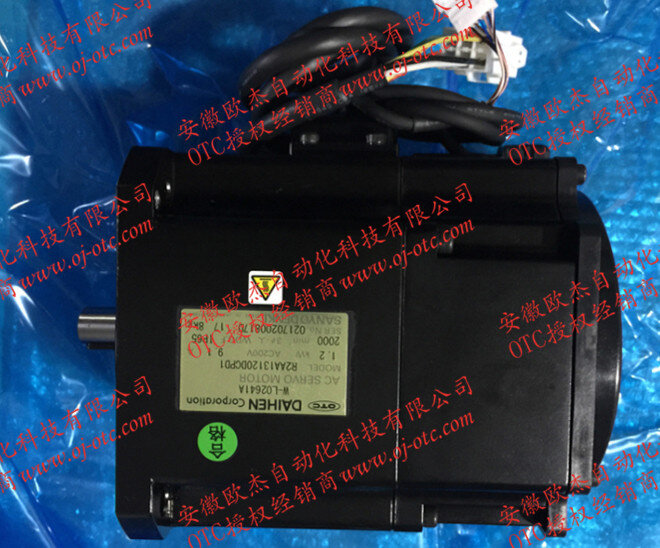

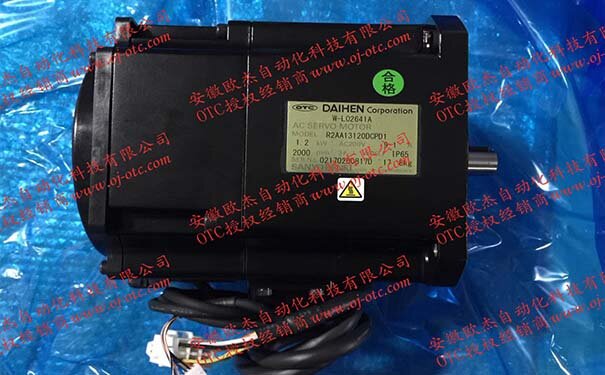

OTC DAIHEN Genuine Robot Servo Motor W-L02641 (Replacement for W-L02150) Technical Analysis

OTC DAIHEN W-L02641 Industrial High-Torque AC Synchronous Servo Motor is the core driving component responsible for high-dynamic response and heavy-load kinematic positioning in robotic manipulators. As an authentic Japanese imported component, this motor is engineered primarily for the 2nd axis (lower arm / front-back swing axis) of OTC FD series welding robots as well as designated motion axes in compatible controller systems. In multi-axis automated welding cells characterized by rapid deceleration and high-frequency duty cycles, the 2nd-axis motor directly counteracts the immense gravitational torque and cantilevered payload of the robot manipulator. Consequently, its dynamic overload capability and absolute brake reliability directly govern weld trajectory smoothness and overall operational safety.

🔍 Model Evolution, Version Compatibility & Axis Allocation Guidelines

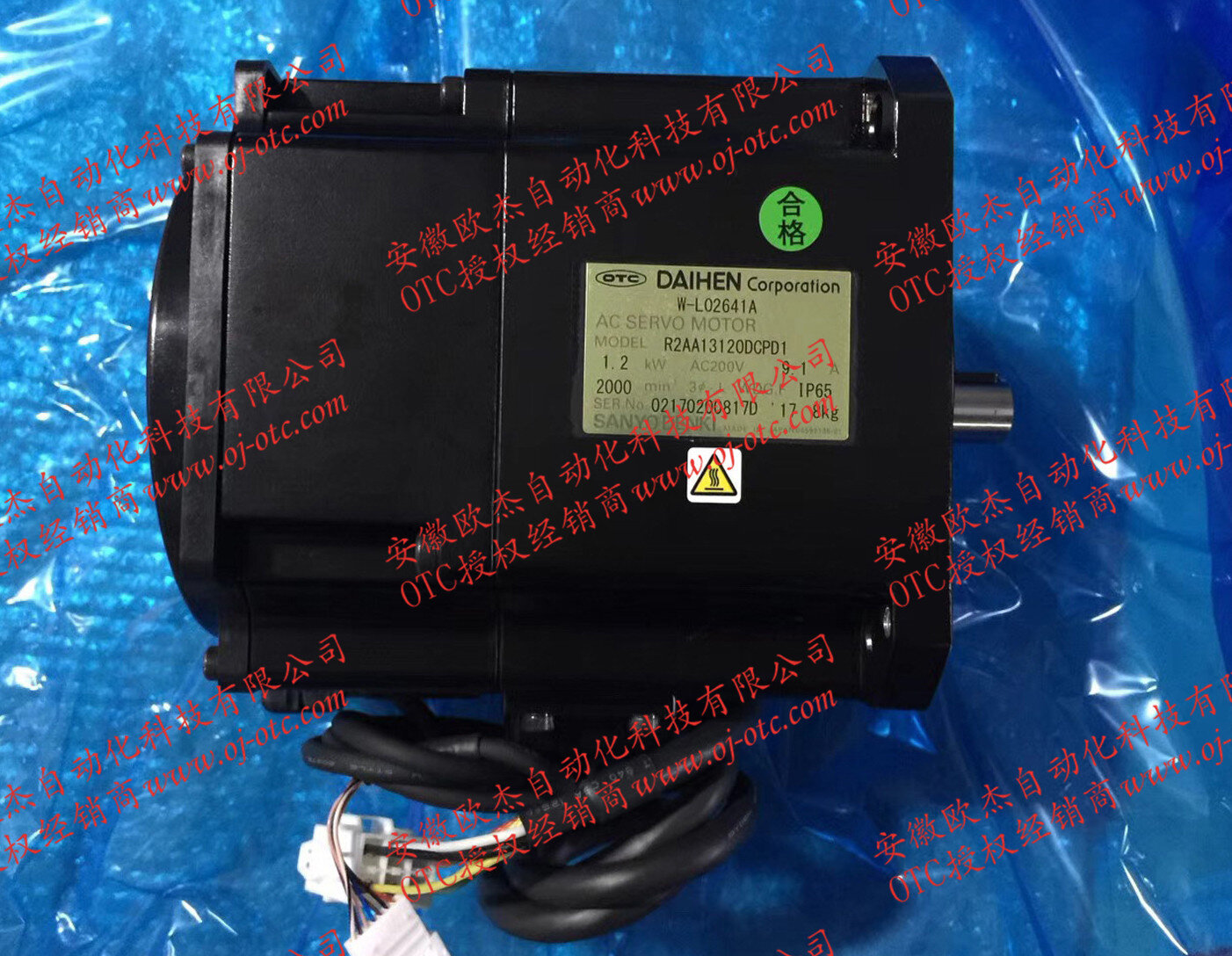

As illustrated in the close-up photograph above, W-L02641 is the official upgraded model engineered to seamlessly replace the legacy discontinued motor W-L02150. Both models feature 100% identical physical specifications in flange mounting hole coordinates, output shaft diameter, keyway dimensions, and power/encoder connector receptacles. Controller drive parameters remain fully backward-compatible, enabling direct drop-in replacement without software adjustments.
📞 Procurement & Technical Verification Note: While the legacy W-L02150 was historically applied across the 1st axis (rotational base axis) of older A2 series robots, the latest OEM technical upgrade directives specify that **replacements for the 1st axis of A2 series robots are officially designated to model W-L02146, not this part number.** The W-L02641 servo motor is dedicated primarily to the 2nd axis of FD series robots and specific high-payload axes. To avoid procurement errors in mixed-generation robot workshops, always verify control cabinet motherboard part numbers or consult our engineering team prior to purchasing.

🌟 Core Engineering Advantages & Active Safety Brake Architecture

• High-Resolution 17-Bit Absolute Encoder: The motor tail integrates an OEM shock-resistant, high-dynamic-response serial absolute encoder (Absolute Encoder). Providing hundreds of thousands of pulses per revolution for sub-millimeter angular displacement calculation, it features closed-loop position memory during power shutdowns. As long as the encoder battery maintains voltage, the robot resumes operation immediately upon power-up without requiring repetitive mechanical homing.
• High Torque Density & Robust Magnetic Circuit Design: Optimized Neodymium Magnet magnetic circuitry generates immense instantaneous torque within a compact axial frame. Delivering superior demagnetization resistance, it effortlessly absorbs mechanical shock loads during aggressive acceleration and deceleration cycles.
• Fail-Safe Mechanical Power-Off Brake (Brake) System: Tailored for the heavy gravitational loads of the 2nd axis (lower arm swing), the motor incorporates a heavy-duty electromagnetic braking assembly. In the event of workshop power loss or triggering of the emergency stop circuit, the brake locks the motor spindle within microseconds, **100% preventing mechanical arm drop** and safeguarding welding torches, fixtures, and operators.

🔧 Field Replacement, Zero Calibration & Overload Troubleshooting Guide

• Strictly Prohibit Live Unplugging to Prevent Encoder High-Voltage Breakdown: Before disconnecting power power lines and weak-signal encoder aviation plugs, always disconnect the main control cabinet breaker completely. Forcibly unplugging servo connectors under live electrical load generates instantaneous counter-electromotive force arcing, which can flow backward through feedback lines to destroy fragile IC chips inside the absolute encoder.
• Mandatory Zero-Point Mastering Post-Replacement: Because replacing the motor detaches the physical drivetrain on the 2nd axis, **never directly execute existing automated welding production programs after installing a new W-L02641**. Technicians must access the calibration interface (Calibration) via the teach pendant, utilize OEM alignment pins or fixtures to rewrite absolute zero coordinates for the 2nd axis, and conduct slow-speed (Manual Core) dry runs to confirm tool center point (TCP) accuracy and prevent collision accidents.
• Inspect 2nd-Axis RV Reducer Before Restarting Motor Alarms: If the 2nd-axis servo motor triggers repetitive drive errors (such as overcurrent, motor overheating, or Err 4010 servo overload), maintenance personnel must not reset and restart the robot blindly. First, inspect the heavy-duty RV reduction gear coupled to the motor for physical anomalies such as gear scoring, dried grease caking, or bearing seizure. Forcing a motor to restart against a seized reduction gear will melt motor stator windings within seconds.

• Expedited Worldwide Dispatch & Maintenance Support: For automated welding lines experiencing production halts due to motor failure, Anhui Oujie Automation provides rapid international courier dispatch directly from stock, along with remote technical guidance for mechanical assembly and zero-point calibration.
• Complimentary Engineering Consultation: Procurement clients receive long-term remote engineering backing to assist with zero-point mastering, servo overload current diagnostics, and multi-axis coordinated trajectory optimization.
