OTC DAIHEN P400L (WB-P400L) Full-Digital Smart Pulse Low-Spatter Multi-Material Welding Power Source In-Depth Technical Analysis

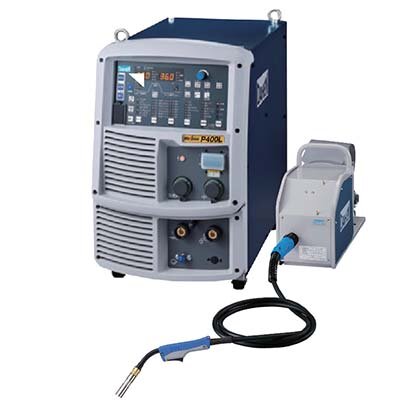

The OTC DAIHEN Welbee P400L (Official Model: WB-P400L) is a 400A-class multi-function low-spatter intelligent platform built on OTC’s advanced Welbee architecture. As a core model in the L-Series (Low Spatter), it not only delivers outstanding DC pulse aluminum and stainless steel welding capabilities but also incorporates the exclusive CST-EX low heat input and ultra-low spatter mode. Paired with a comprehensive customized wire feeder and torch matrix, the P400L effortlessly covers complex applications ranging from precision thin-sheet joining to heavy plate root welding, serving as a favored all-around mother machine in automotive lightweighting, precision steel structures, and automated assembly lines.
🌟 Core Technological Innovations & Versatile Process Selling Points
- Dual-Process Freedom (CST-EX vs. Pulse): To resolve burn-through on thin metal sheets, the welder provides a low-heat-input CST-EX mode where short-circuit spatter is heavily compressed, slashing post-weld grinding labor. When deep penetration or non-ferrous metal (aluminum/stainless) welding is required, operators switch seamlessly to DC pulse mode for deep penetration and aesthetic bead formation.
- Aluminum “Fish-Scale” Beads & Multi-Material Mastery: Features a powerful internal material database. For aluminum alloys, dedicated pulse waveforms easily produce premium fish-scale weld appearance rivaling TIG welding. For stainless steel, the machine provides both standard austenitic modes and specialized ferritic modes, adapting perfectly to sanitary food and medical piping applications.
- Unprecedented Custom Wire Feeding Matrix: Unlike basic machines with single feeder configurations, the P400L assigns dedicated wire feeding mechanisms to specific welding processes: the CMV-7402 for ultra-low spatter carbon steel, and the CMAW series for aluminum alloys. This hardware-level physical isolation permanently eliminates feeding jams and arc instability caused by mismatched feed rolls or liners.
- USB Data Closed Loop & Smart Robotic Integration: Weighing only 60kg, the compact host features a waterproof front-panel USB port supporting 100-group parameter storage, backup, and quality traceability. Natively supporting high-speed spot welding and inching current adjustments, it serves as the ideal smart partner for OTC robotic welding cells.
📋 P400L Core Technical Specifications & Configuration Matrix
Below is the detailed electrical parameter table and material-specific configuration matrix, rigorously unit-decoupled (strictly adhering to industrial factory specifications—ensure equipment selection matches actual material requirements):
| Specification Category & Factory Configuration Kits | Unit | Industrial Factory Rated Technical Data | |
|---|---|---|---|
| General Equipment Name / Official Power Source Model | – | Welbee Inverter P400L / WB-P400L | |
| Input Phases & Rated Grid Voltage/Frequency | V, Hz | Three-phase, 380V ±10%, 50/60 Hz | |
| Rated Total Input Capacity (Apparent / Active) | kVA (kW) | 18.8 (17.1 kW) | |
| Output Current Stepless Adjustment Range | A | 30 ～ 400 | |
| Rated Duty Cycle (Load Factor) | DC Mode | % | 60% (at 400A) |
| Pulse Mode | 50% (at 400A) | ||
| External Dimensions (W×D×H) / Net Weight | mm / kg | 395 × 710 × 640 / 60.0 | |
| Dedicated Factory Configuration Packages (Select Strictly By Process) |
Steel / Stainless (Low Heat Input / Low Spatter) | – | CMV-7402 Wire Feeder BTV3510-30 Torch |
| Steel / Stainless (Standard Pulse) | – | CM-7402 Wire Feeder BT3510-30 Torch |
|
| Aluminum Alloy (Dedicated Air / Water-Cooled) | – | CMAW-7402 Wire Feeder BTA300-30 Dedicated Aluminum Torch |
|
| Shielding Gas Flow Regulator | MAG/MIG (Stainless/Alum) | – | HLAR19-50L Argon/Mixed Gas Flowmeter |
| Pure CO₂ (Mandatory for CST-EX) | HLCO2 *9 Heated CO₂ Flowmeter | ||
| Control & Main Welding Combined Long Cable | – | BKPDT-6002 (60mm²) | |
🔧 P400L Precision Multi-Process Field Configuration & Guide
- Wire Feeder Compatibility Rule for Ultra-Low Spatter: The P400L’s strength lies in assigning specific hardware to specific welding processes. To achieve grind-free thin-sheet welding via CST-EX technology, you must ensure you select the dedicated CMV-7402 low-spatter wire feeder and BTV3510 torch! Low-spatter control requires microsecond current retraction; standard wire feeders lack torque responsiveness, causing frequent burnback, arc outages, and severe spatter if interchanged.
- Thermal Overload Warning for 50% Duty Cycle in Pulse Mode: Review the specifications carefully: at 400A, DC mode duty cycle is 60%, but in pulse mode (aluminum/stainless welding), the 400A duty cycle drops to 50%. Pulse welding generates higher thermal loads; if operating continuously near peak currents, enforce a strict 5-minute welding and 5-minute cooling cycle, or upgrade to CMAW series water-cooled torch configurations.
- Heated Flowmeter Requirement for Pure CO2 Gas: When engaging CST-EX mode with pure CO2 shielding gas, gas flow must remain high and steady. You must install a heated CO2 flowmeter (such as the HLCO2 series) and verify heater power connection. In winter or during continuous high-volume output, unheated decompression valves freeze instantly, blocking gas flow and causing dense honeycomb porosity across the weld seam.
📞 Get Instant Factory Quotes for the OTC WB-P400L Welbee Low-Spatter Pulse Welder
As an authorized Tier-1 distributor of OTC DAIHEN, Anhui Oujie Automation Technology Co., Ltd. supplies the full line of Welbee digital pulse welding machines, and the complete P400L wire feeder matrix (CMV low-spatter / CMAW aluminum series), dedicated BTV/BTA torches, and heated flowmeters. We boast over a decade of equipment selection and automated integration experience in automotive parts, thin-plate precision fabrication, and robotic workstations.
Multi-Material Welding Procurement & Process Consultation: WhatsApp：+86-18096631656 | Mail：ahojotc@gmail.com
