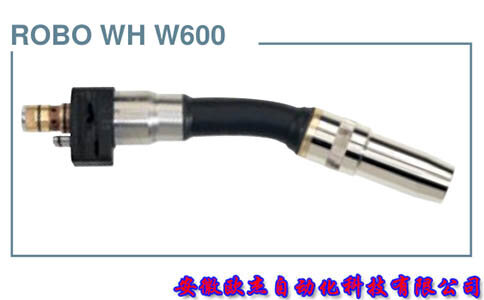

Abicor Binzel ROBOWHPP W600 Push-Pull Water-Cooled Robotic Torch System
The Abicor Binzel ROBOWHPP W600 is an elite robotic welding system engineered to conquer the challenges of feeding soft aluminum alloys and thin wires in heavy industrial automation. Combining a 600-Ampere water-cooled architecture with an active front-end Push-Pull wire drive motor, it synchronizes with the rear wire feeder to eliminate wire buckling, tangling, and feed hesitation over extended cable assemblies. Furthermore, its integrated WH quick-change neck mechanism allows automated tool exchange while preserving absolute Tool Center Point (TCP) repeatability.
⚙️ Detailed Consumables & Part Number Matrix
| Torch Neck Category | 0° | 22° | 35° | 45° |
|---|---|---|---|---|
| Standard Water-Cooled Torch Neck | 962.1745.1 | 962.1746.1 | 962.1747.1 | 962.1748.1 |
| Torch Neck with Nozzle Sensor | 962.1769.1 | 962.1770.1 | 962.1771.1 | 962.1772.1 |
| Base Material | Wire Ø (mm) | Binzel Part Number |
|---|---|---|
| Carbon / Stainless Steel (Steel/CrNi) | Ø 1.0 – 1.2 mm | 149.0270.5 |
| Heavy Carbon / Stainless Steel (Steel/CrNi) | Ø 1.4 – 1.6 mm | 149.0271.5 |
| Aluminum & Alloy Wire | Ø 1.2 – 1.6 mm | 149.0272.5 |
| Gas Diffuser Description | Binzel Part Number |
|---|---|
| Standard Heavy-Duty Gas Diffuser | 146.0079.10 |
| Tip Adapter Thread & Material | Binzel Part Number |
|---|---|
| M12 Heavy-Duty Thread Pure Copper Adapter | 142.0214.10 |
| Material & Technology | Wire Ø (mm) | Binzel Part Number |
|---|---|---|
| CuCrZr Alloy (CuCrZr) |
0.8 mm | 140.1563.10 |
| 0.9 mm | 140.1564.10 | |
| 1.0 mm | 140.1565.10 | |
| HDS High-Durability Alloy (HDS) |
1.2 mm | 147.6563.10 |
| 1.4 mm | 147.6564.10 | |
| 1.6 mm | 147.6565.10 |
| Nozzle Function / Form | Interface Outer Ø A | Exit Inner Ø B | Total Length C | Binzel Part Number |
|---|---|---|---|---|
| Flush (Wide) | 30 mm | 21.5 mm | 92 mm | 145.0686.5 |
| Stick-Out (+6.0 mm Special) | 30 mm | 21.5 mm | 86 mm | 145.0687.5 |
| Recess (-3.0 mm Heavy-Duty) | 30 mm | 21.5 mm | 95 mm | 145.0688.5 |
| Flush (Narrow) | 30 mm | 18.0 mm | 92 mm | 145.0689.5 |
🔧 Engineering & Maintenance Guide
- Push-Pull Synchronization: Ensure the front pull-motor in the torch head is perfectly synchronized with the rear wire feeder. Incorrect drive roll tension will deform soft aluminum wire, causing shaving and liner blockage.
- Drive Roll Maintenance: Clean wire drive rolls weekly using compressed air to remove metallic shavings and dust that accumulate during continuous Push-Pull operation.
- 100% Duty Cycle Cooling: Operating at 600A requires high-capacity industrial liquid chillers. Check coolant flow and return temperatures regularly to protect the integrated motor assembly.
