4509-825 Cement Resistor

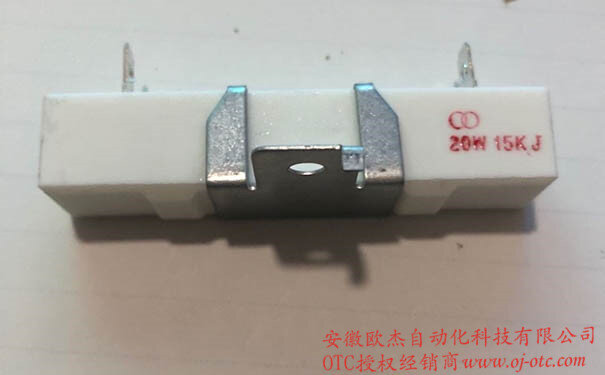

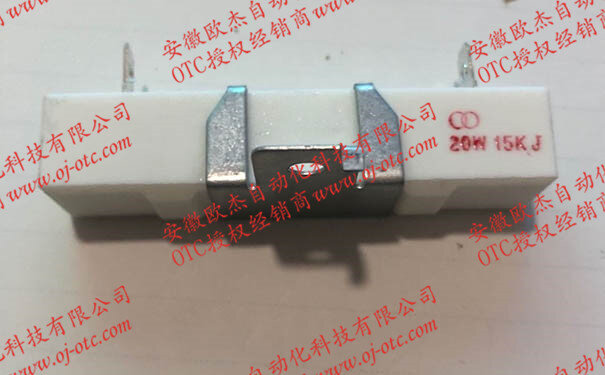

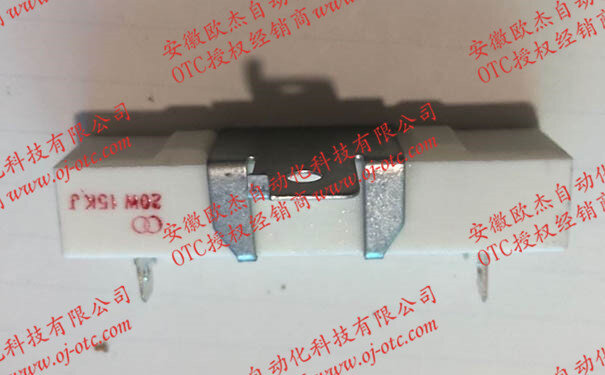

OTC Daihen Genuine Cement Resistor 4509-825

4509-825 is the genuine OTC Daihen high-performance cement resistor featuring flame-retardant ceramic encapsulation and a precision wire-wound element, specifically designed for OTC industrial inverter and gas-shielded welding machines. In the primary power circuit, it performs critical functions including snubber surge absorption, capacitor discharging, and current-limiting protection. Its exceptional thermal stability and overload tolerance effectively absorb high-frequency voltage spikes, safeguarding valuable power semiconductors.

📋 Core Technical Specifications

🔧 On-Site Replacement & Maintenance Precautions

Cement resistors operate under high-temperature and high-voltage conditions. Proper installation is essential to prevent thermal damage to surrounding PCB components:

• High-Voltage Capacitor Discharge Safety: This resistor is commonly installed in capacitor discharge circuits. After disconnecting main physical power, wait at least 10 minutes to allow capacitors to discharge fully through the discharge resistor before handling.
• Suspended Mounting & Heat Dissipation: The resistor body dissipates substantial heat during heavy load operation. When installing a replacement resistor, leave adequate lead height so the resistor body is completely suspended above the PCB and surrounding wiring to prevent heat damage.
• Soldering Quality & Cold Joint Prevention: Use a high-power soldering iron to ensure thorough solder penetration and full, reliable solder joints. Cold solder joints overheat under repeated pulse currents, causing lead detachment or burnout.
• Inspect Preceding Component Failures: If the original resistor is cracked, burnt, or blackened, do not simply replace the resistor. Severe thermal failure usually indicates short-circuited IGBT power modules or bridge rectifiers in preceding stages. Fully inspect power components before testing under power.

4509-825 is the genuine OTC Daihen cement resistor designed for reliable snubber absorption and capacitor discharge in welding power sources. We provide 100% original replacement parts and professional maintenance guidance.
