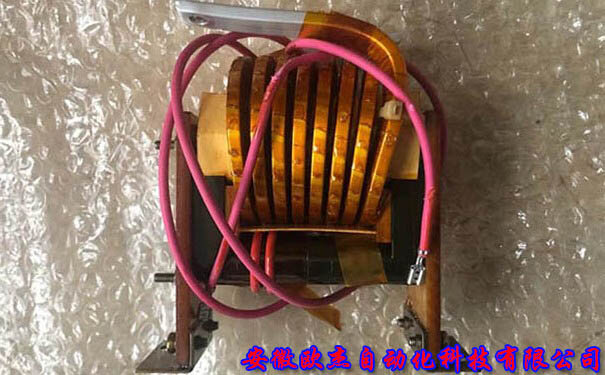

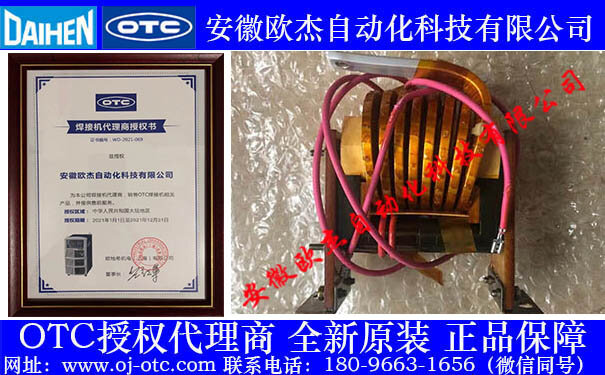

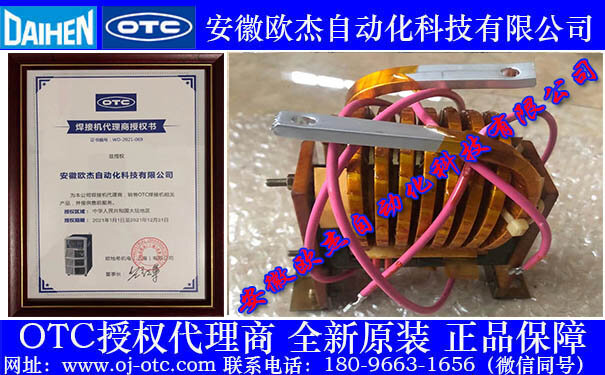

OTC Daihen Genuine Industrial High-Frequency Coil C0111C00 (Filtering / Storage Inductor)
C0111C00 is an official OEM genuine electromagnetic inductor coil custom-engineered by OTC Daihen for high-performance gas-shielded welding machines. Acting as the current-smoothing heart within main or control circuits, this coil is precision-wound with high-purity oxygen-free copper enameled wire around a high-permeability magnetic core and sealed with industrial vacuum varnish impregnation. It provides exceptional inductance stability under high-amperage and high-frequency operating loads, effectively smoothing current waveforms, filtering high-frequency ripple, and storing ignition energy. Replacing faulty inductors with an original C0111C00 eliminates erratic arc flutter, severe spatter, and inter-turn short-circuit breakdowns common to aluminum-wound aftermarket coils, delivering a soft, pure welding arc.
⚙️ Technical Specifications
| Specification Attribute | Detailed Parameter |
|---|---|
| OEM Part Number | C0111C00 |
| Product Type | Main/Control Circuit Inductor Coil Assembly |
| Compatible Models | OTC Gas-Shielded Welding Machine Series (Refer to equipment schematic) |
| Core Circuit Function | Current waveform smoothing, HF filtering, transient energy storage, arc stabilization |
| Quality Guarantee | 100% genuine OEM pure-copper electrical component; low temperature rise |
🔧 On-Site Electrical Installation & Inductor Maintenance Guide (Essential Reading)
- Prevent Enamel Abrasion (Inter-Turn Short Circuits): Pure copper coils are protected by a thin layer of insulating varnish. Never scratch or strike the coil surface with screwdrivers or sharp tools during installation! Abrading the varnish causes adjacent copper turns to short-circuit, which collapses inductance and causes immediate coil burnout and smoke upon power-up.
- High-Amperage Terminal Torque Discipline: Inductor coils carry total welding output amperage. Tighten all terminal nuts securely with a calibrated wrench. Any loose joint generates extreme localized contact resistance, heating terminals to hundreds of degrees and melting lead connections.
- High-Voltage Capacitor Discharging: Filtering inductors operate adjacent to high-voltage capacitor banks. Disconnect input power and wait at least 10 minutes, verifying zero DC bus voltage with a multimeter before touching coil leads to prevent lethal electric shock.
- Dust Purging Maintenance: Grinding iron dust drawn into the welder by cooling fans settles between winding gaps, causing creeping discharge in humid air. Purge coil surfaces quarterly using dry compressed air.
