CPVE500 IGBT Inverter Controlled Welder

OTC DAIHEN CPVE500 Full-Digital IGBT Inverter Heavy-Duty High-Current CO₂/MAG Welding Power Source In-Depth Technical Analysis

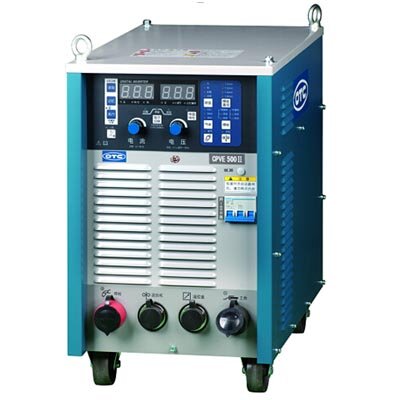

The OTC DAIHEN CPVE500 (Official Model: CPVE-500 S-2) is a 550A-class full-digital inverter behemoth engineered specifically for heavy structural steel, bridge construction, and heavy mechanical fabrication. Leveraging OTC’s industry-leading IGBT inverter waveform control technology, this equipment delivers an extraordinary 550A peak current and an absolute 100% continuous duty cycle while maintaining exceptional arc stability and low spatter performance. Its digital soft-touch key panel combined with an ergonomic parameter lock makes it the ultimate tool for heavy fabrication shops striving to boost efficiency and rigorously enforce welding quality standards.

🌟 Core Inverter Advantages & Heavy-Duty Process Selling Points

• 100% Extreme Duty Cycle: Standard 500A MIG/MAG welders typically offer only a 60% duty cycle under full load, whereas the CPVE500 supports 24/7 continuous arc welding even at an intense 550A output. This completely eliminates downtime caused by thermal overload during heavy long-seam welding.
• IGBT Full-Digital Waveform Precision Control: Abandons coarse regulation. The IGBT inverter high-frequency processor slices and fine-tunes current waveforms in real time. This ensures smooth, stable droplet transfer across the entire output range from low-current root passes to 500A+ deep penetration, drastically reducing post-weld deslagging labor.
• Arc Characteristic Customization & Anti-Tamper Key Lock: Features stepless arc characteristic (soft/stiff) adjustment, allowing welders to tailor arc rigidity for flat or vertical welding positions. The built-in “key lock protection” is a quality control asset; once process parameters are finalized, engineers can lock the panel to prevent unauthorized current adjustments that cause lack-of-fusion defects.
• Soft-Touch Digital Interface: Replaces traditional mechanical potentiometers that are prone to dust infiltration and wear. The digital soft-touch screen provides clear visual data and delivers exponentially longer service life in harsh, dusty industrial environments.

📋 CPVE500 Core Technical Specifications & Standard Configuration Matrix

Below is the detailed electrical, physical parameter, and heavy-duty matching component table, rigorously unit-decoupled (strictly adhering to industrial factory specifications):

🔧 550A IGBT Inverter Power Source Field Maintenance & Thermal Guide

• Torch Meltdown Warning for 100% Full Load: Although the CPVE500 power source supports a 100% continuous duty cycle, its standard factory-supplied WT5000-SCD is an air-cooled torch with a rated duty cycle of only 60% at 500A! If your fabrication process requires continuous long-seam welding between 500A and 550A without downtime, you must upgrade to a WTCAW-5002 (or higher) heavy-duty water-cooled torch paired with a recirculating water cooler! Otherwise, the air-cooled torch barrel will rapidly overheat and melt, ruining internal gas channels and contact components.
• Dust Cleaning Rule for High Power Density Inverters: Generating 550A output and a 100% duty cycle within a compact 55kg chassis requires massive cooling airflow from the rear fan. In heavy fabrication workshops generating intense metallic grinding dust, this machine acts as a powerful dust magnet. You must blow out internal cooling channels every two weeks using dry compressed air below 0.15MPa! Clogged IGBT cooling fins will cause thermal breakdown and expensive module failures.
• Utilizing the Panel Lock to Enforce Quality Standards: In piece-rate manufacturing environments, operators often blindly boost welding current to speed up production, resulting in poor bead aesthetics, slag inclusion, and coarse grain structures. The CPVE500 features an integrated key lock function. We strongly recommend that welding supervisors finalize optimal voltage and arc stiffness parameters and lock the panel, ensuring consistent welding quality across the entire workshop.
