H21B21 Ceramic Nozzle

In-Depth Technical Analysis: Genuine OTC DAIHEN H21B21 No. 6 Ceramic Nozzle (9.5mm Bore) for AW-18 & AWX-2081 TIG Torches

OTC DAIHEN H21B21 No. 6 Thermal-Shock Resistant Ceramic Nozzle (9.5mm Bore, 5 Pcs/Box) is the standard gas-directing shield cup custom-engineered for classic OTC AW-18 and AWX-2081 TIG welding torches. In precision stainless steel sheet metal, non-ferrous alloy piping, and high-purity orbital TIG welding, shielding gas laminar flow quality directly determines weld bead cleanliness and porosity inspection pass rates. Substandard commercial ceramic nozzles crack easily under sudden thermal shock or leak shielding gas at loose mounting threads, causing weld discoloration and oxidation. Sintered from high-purity refractory alumina ceramic with official DAIHEN branding, H21B21 provides exceptional thermal shock resistance, high-frequency electrical insulation, and laminar argon flow control.

🔍 No. 6 9.5mm Bore Geometry & Refractory Alumina Ceramic Advantages

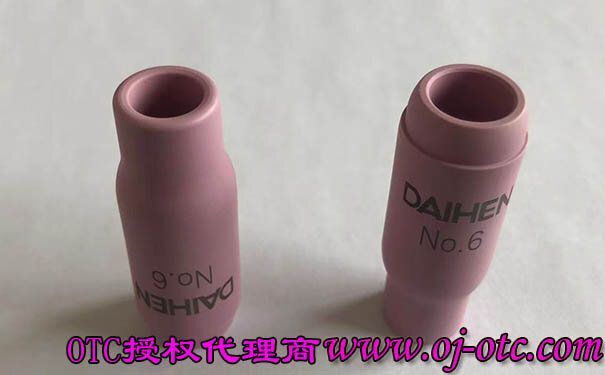

• No. 6 9.5mm Laminar Gas Constriction: Stamped with official DAIHEN NO.6 identification, the 9.5mm internal bore is the standard size for precision thin-to-medium plate TIG welding. It constricts argon shielding gas into a dense, cylindrical laminar column that protects the molten weld pool and tungsten electrode tip from atmospheric contamination without turbulence.
• High-Purity Alumina Refractory Ceramic: Sintered from industrial-grade alumina ceramic under high temperatures and pressures, H21B21 withstands extreme thermal cycling. It resists thermal shock during rapid arc ignition and termination without cracking or spalling.
• High-Frequency Electrical Insulation & Precision Threads: High dielectric strength prevents high-frequency arc ignition voltage (reaching tens of thousands of volts) from arcing through the nozzle wall. CNC-formed mounting threads ensure concentric alignment with AW-18 / AWX-2081 torch bodies, preventing lateral gas leaks.

🛠 On-Site Nozzle Replacement Guide & Avoiding Thread Seizure and Gas Leaks

• 🚨 Critical TIG Welding Rule: Check Insulator Gaskets and Avoid Brute-Force Overtightening! When mounting H21B21 onto TIG torch heads, inspect the PTFE or Teflon insulator gasket on the torch body. **Never install a ceramic nozzle over a missing or cracked insulator gasket!** A damaged gasket causes air entrapment that turns weld beads black and porous. Hand-tighten H21B21 securely; never use tools or overtighten hot nozzles that could crack the ceramic threads.
• Maintain Proper Tungsten Electrode Stick-Out: For standard No. 6 ceramic nozzles without gas lenses, keep tungsten electrode stick-out between 3mm and 5mm. Excessive stick-out extends beyond the argon shielding column, causing rapid tungsten oxidation and weld pool contamination.
• Keep Ceramic Nozzles Dry and Oil-Free: Store replacement ceramic nozzles in dry, sealed containers. Moisture or oil residue on ceramic walls vaporizes during arc ignition, introducing hydrogen and carbon impurities into the weld seam.

• Complete AW-18 / AWX-2081 TIG Torch Consumables BOM: Stable TIG arc ignition requires matching front-end hardware. To procure compatible collets, collet bodies, tungsten electrodes (such as 0870-030), and back caps, check our technical catalog for full BOM diagrams to ensure accurate part selection.
