Name: H950C15 2.4mm Wire Guide Block | OTC Feeder Guide Part
Brand: OTC DAIHEN
SKU: H950C15

OTC Daihen Genuine Heavy-Duty Wire Guide Block H950C15 (For 2.4mm Wire)

H950C15 is an official OEM genuine wire guide block engineered by OTC Daihen specifically for 2.4mm large-diameter wire feeding in high-amperage and SAW systems. Thick 2.4mm welding wires exhibit extreme rigidity, placing demanding wear and impact loads on feeder guiding components. Constructed from premium industrial alloy steel with advanced surface high-frequency hardening and precision bore polishing, H950C15 securely anchors and directs large-diameter wires. It prevents internal bore grooving, copper coating abrasion, and wire chatter common to soft aftermarket parts, providing rock-solid wire delivery for heavy automated welding lines.

OTC Daihen Genuine Guide Block H950C15 Front View — Figure 1: Front View of Genuine OTC 2.4mm Wire Guide Block H950C15

⚙️ Technical Specifications

Specification Attribute	Detailed Parameter
OEM Part Number	H950C15
Product Type	Large-Diameter Wire Feeder Guide Block / Retaining Base
Applicable Wire Size	Dedicated fit for 2.4mm diameter welding wire
Material & Processing	High-strength alloy steel + surface induction hardening & precision bore polishing
Quality Guarantee	100% genuine OEM guide block; zero runout or wear grooving

OTC Guide Block H950C15 Side View — Figure 2: Side Profile and Advanced Induction-Hardened Surface of H950C15

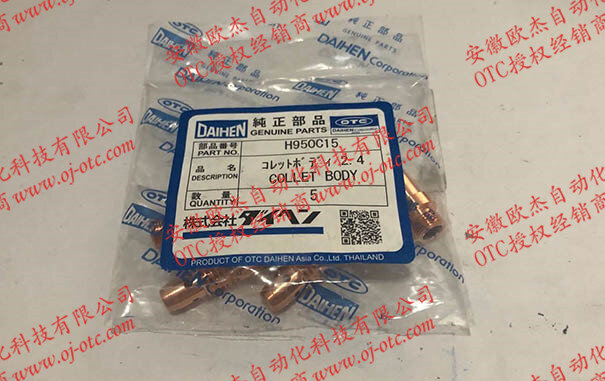

OTC Guide Block H950C15 Bore Details — Figure 3: Close-Up of the Precision Polished 2.4mm Guide Bore on H950C15

🔧 On-Site Installation & Heavy-Duty Feeding Guide (Essential Reading)

Prevent Large-Wire “Sawing Effect”: Thick 2.4mm wire acts like a hacksaw blade if misaligned. During assembly, ensure strict concentric alignment across the feed roll groove, H950C15 bore center, and inlet/outlet conduits. Even half a millimeter of vertical offset will cut eccentric wear grooves into the guide block within days.
Even Clamping Torque: Tighten retaining bolts with balanced torque. Loose clamping allows the guide block to vibrate under heavy feeding loads, causing wire trajectory flutter and accelerating wear on adjacent drive gears and bearings.
Copper Dust Purging: Even highly polished bores accumulate sheared copper flakes after extended wire throughput. Remove the guide block periodically and use a probe or compressed air to clean hardened metallic debris from the bore, preventing wire jams.
End-of-Life Identification: Guide blocks are high-wear consumables. When 2.4mm wire exhibits vertical play inside the bore or feeding resistance rises noticeably, the bore has worn oval and must be replaced immediately with a new H950C15.
