Name: K5374P00 PCB (K5374P) | OTC XD500 Series Welder Main Board
Brand: OTC DAIHEN
SKU: K5374P00

OTC Daihen Genuine Main Control PCB Board K5374P00 (K5374P)

K5374P00 (K5374P) is an official genuine main control circuit board custom-engineered by OTC Daihen for classic heavy-duty industrial XD500 MIG/MAG gas-shielded welding machines. Acting as the “central computing brain” of the power source, this board features high-density SMT manufacturing and industrial processors to command precision welding parameter regulation, wire feed motor synchronization, and full-time safety monitoring (overcurrent, overvoltage, thermal overload). Replacing an aged, moisture-damaged, or dust-shorted PCB with an original K5374P00 board eliminates parameter drift, communication alarms, hard arc starting, and system freezes, restoring your XD500 welding machine to factory-level operating precision and power.

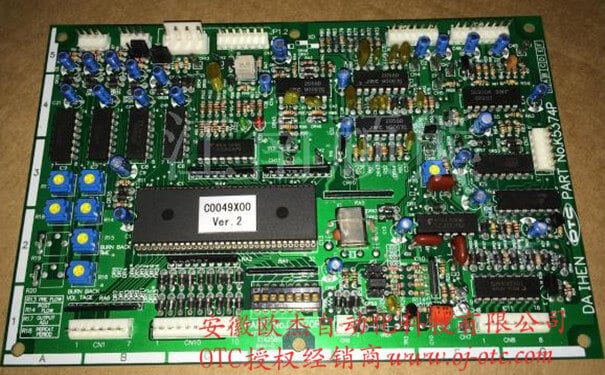

OTC Daihen Genuine PCB K5374P Front View — Figure 1: Overall Front View of Genuine OTC XD500 Main Control PCB K5374P00 (K5374P)

⚙️ Technical Specifications

Specification Attribute	Detailed Parameter
OEM Part Number	K5374P00 (Nameplate abbreviation often marked K5374P)
Product Type	Welding Machine Main Control PCB Board
Compatible Models	Dedicated fit for OTC XD500 Heavy-Duty Welding Machines
Core Function	Waveform parameter regulation, wire feed timing, underlying overcurrent/overvoltage protection
Quality Guarantee	100% genuine brand-new OEM part; zero refurbished or repaired boards

OTC PCB K5374P00 Fool-Proof Sockets — Figure 2: K5374P00 Peripheral Communication Ports and Precision Fool-Proof Socket Details

🔧 On-Site Installation & Troubleshooting Guide (Essential Reading)

External Short-Circuit Diagnostics: If the original PCB burned out, thoroughly inspect external wire feeder control cables and torch trigger wiring for insulation breakdown or chassis grounding before installing K5374P00. If 380V/220V power penetrates 24V signal circuits, the replacement PCB will be destroyed instantly upon startup.
High-Voltage Capacitor Discharging: Mandatory safety protocol! After disconnecting physical input AC power, main filtering capacitors inside the welder retain lethal high voltage. Wait 10 minutes and use a DC multimeter to confirm that bus voltage has dropped to 0V before removing the old PCB, preventing residual voltage from destroying core ICs.
Strict ESD Antistatic Discipline: The board is populated with sensitive microprocessors and surface-mount ICs. Always wear a grounded ESD wrist strap when handling or installing the card, and never touch exposed connector pins or IC packages with ungrounded hands.
Fool-Proof Connector Insertion: Align all ribbon cable headers precisely with keyway slots and apply even, perpendicular pressure. Never rock or force connectors angled, as cracked solder pads or fractured copper leads trigger recurring communication errors.
