K5439B12 Wire Feed Roll

In-Depth Technical Analysis: Genuine OTC DAIHEN K5439B12 0.9/1.0/1.2mm High-Hardness Alloy Wire Feed Roll for MIG/MAG Feeders

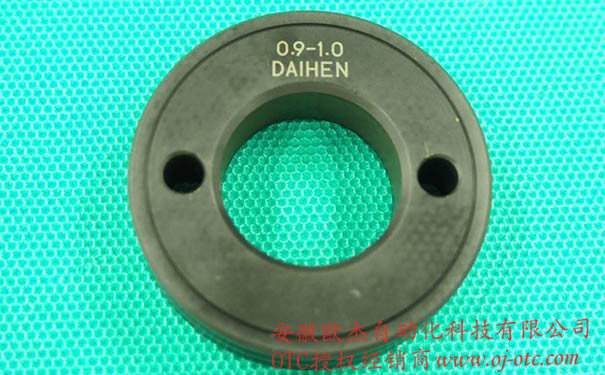

OTC DAIHEN K5439B12 High-Durability Alloy Wire Feed Roll (0.9/1.0/1.2mm) is the primary active drive roller custom-engineered for classic OTC MIG/MAG welding wire feeder assemblies. Across carbon steel, stainless steel, and alloy sheet-to-plate fabrication, 0.9mm, 1.0mm, and 1.2mm represent the most widely utilized welding wire diameters. K5439B12 incorporates precision-machined dual grooves that accommodate these core diameters on a single reversible roller. Substandard aftermarket cast steel rollers suffer from inaccurate groove tolerances and poor hardness, causing rapid groove widening, wire slippage, arc wandering, and copper plating flaking that clogs torch liners. Forged from Japanese alloy steel and induction-hardened to extreme surface hardness, K5439B12 provides zero-slip wire propulsion and extended operational life.

🔍 0.9/1.0/1.2mm Multi-Diameter Groove Geometry & Japanese Alloy Steel Advantages

• Dual-Groove Multi-Diameter Versatility: Engineered with precision U/V groove profiles stamped with official OEM diameter markings, K5439B12 allows workshop technicians to switch between 0.9mm, 1.0mm, and 1.2mm wire sizes simply by reversing the roller on its drive shaft. This versatility reduces spare parts inventory while ensuring optimal wire grip for each diameter.
• Induction-Hardened Alloy Steel Construction: Forged from OEM high-rigidity alloy steel, the roller grooves undergo deep high-frequency induction quenching. This surface hardening prevents abrasive wire from scoring, widening, or flattening the groove profile over continuous B2B industrial shifts.
• Zero-Flaking CNC Groove Machining: Machined on Japanese CNC grinding centers, the groove surfaces feature a smooth finish. Clean groove geometry propels wire reliably without scraping or flaking copper plating off solid wires, preventing copper dust buildup inside liners and contact tips.

🛠 On-Site Roller Replacement Guide & Avoiding Groove Misalignment and Wire Flaking

• 🚨 Critical Maintenance Rule: Align Roller Grooves Exactly with Wire Guide Tubes! When installing K5439B12 onto wire feeder drive shafts, technicians must verify that the active roller groove aligns concentrically with inlet and outlet wire guide tubes. **Never operate a feeder with misaligned drive rolls!** Off-center grooves bend the wire sharply as it leaves the roller, shaving off copper plating and causing severe wire feeding pulsation. Use alignment shims as specified in the OEM manual.
• Set Correct Pressure Arm Tension: Do not over-tighten pressure arm springs when feeding 0.9mm to 1.2mm wire. Excessive clamping pressure deforms wire cross-sections, increasing friction inside contact tip bores. Adjust tension just until wire feeding remains slip-free during a hand-glove resistance check.
• Regularly Clean Roller Grooves: Wipe roller grooves weekly with a clean, dry cloth to remove dust and drawing lubricant residues. Never clean precision roller grooves with abrasive files or wire wheels that could alter the groove profile.

• Complete OTC Wire Feeder Consumables BOM: Consistent wire feeding requires matching drive components. To procure compatible engineering plastic pressure rolls (such as K5439C00), wire guide tubes, pressure arms, wire liners, and feeder gearboxes, check our technical catalog for full BOM diagrams to ensure accurate part selection.
