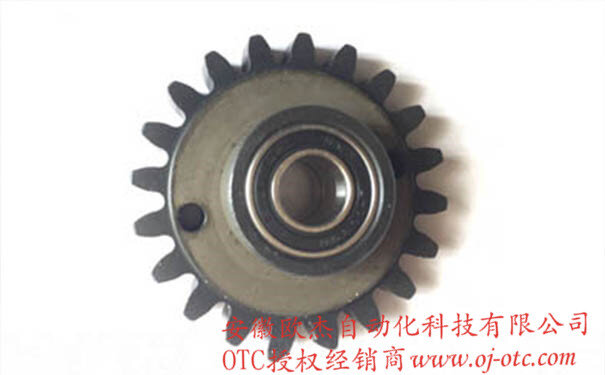

L10595P00 Wire Feed Drive Roll

OTC DAIHEN Genuine AF4012C Wire Feeder Drive Roll L10595P00 In-Depth Analysis

OTC DAIHEN L10595P00 Precision Wire Feed Drive Roll is a core mechanical driving component engineered specifically for OTC classic heavy-duty AF4012C robotic wire feeders (as well as select high-performance semi-automatic wire feeders). Under demanding continuous automated Gas Metal Arc Welding (MIG/MAG) duty cycles, it withstands immense clamping roll pressure and wire tangential friction, converting motor rotational torque into smooth, linear driving force that pushes welding wire through meters of wire guide conduit. The V-groove machining precision and metallurgical hardening eliminate arc stutter, wire slippage, and intermittent weld bead formation in automated robotic cells.

🌟 Material Forging & Micron-Level V-Groove Drive Technology

• Induction-Hardened Special Alloy Steel: Industrial welding wire (especially copper-plated solid carbon steel wire) possesses high surface hardness that acts like a file against drive roll grooves during high-speed rolling contact. The L10595P00 is forged from Japanese OEM premium high-carbon alloy steel subjected to deep induction surface hardening (Hardening), achieving an elevated Rockwell hardness (HRC). Even after feeding tons of wire, its grooves maintain their original geometric depth, preventing the rapid groove wearing common in standard carbon steel gears.
• Zero Eccentricity Design for AF4012C: The inner bore and keyway of this drive roll match the AF4012C wire feeder drive shaft to micron interference tolerances. This concentric mounting ensures zero radial runout during high-speed rotation. Suppressing mechanical vibration, it eliminates cyclic wire feeding stutter that causes wavy, uneven weld bead profiles.
• Precision V-Groove Architecture: As shown in the close-up photo above, the outer rim features high-density, precision-machined V-grooves. Compared to rough U-grooves found in copy parts, the OEM V-groove achieves stable two-point line contact with round welding wire. This allows operators to apply minimal spring pressure while generating massive static driving friction, preventing wire slippage and copper flaking while avoiding crushing wire into an oval cross-section that jams contact tips.

🔧 Field Maintenance & Troubleshooting Guide for Wire Slippage

• Never Over-Tighten Pressure Arms to Compensate for Slippage: When wire feeding stutters on the workshop floor, operators frequently over-tighten pressure adjustment springs. **This instantly crushes welding wire, clogging contact tips and accelerating wear on the L10595P00 V-groove.** Correct troubleshooting protocol: inspect groove depth; if flattened, flip the roll to utilize the secondary groove (or replace if both sides are worn), and blow compressed air through the wire guide conduit to clear accumulated iron dust.
• Monitor Metallic Shaving Accumulation: Copper shavings and iron dust shed from low-quality welding wire frequently accumulate and cake at the bottom of V-grooves. This debris elevates wire out of proper groove contact, causing recurrent slippage. Maintenance requirement: clean L10595P00 drive roll grooves thoroughly using a wire brush whenever replacing wire spools or drums.
• Synchronized Set Replacement on Dual-Drive Feeders: For 4-roll dual-drive wire feeding systems, **technicians must flip or replace all 4 drive rolls simultaneously when servicing the L10595P00**. Never mix worn and new rolls; rotational speed differentials between upper and lower rolls will bend welding wire into S-shaped loops (Bird-nesting), jamming the wire feeder motor completely.

• Expedited Worldwide Consumable Dispatch: For automated manufacturing plants experiencing wire feeding halts or consumable depletion, Anhui Oujie Automation provides rapid international courier dispatch directly from stock to ensure uninterrupted production.
• Complimentary Wire Feeding Diagnostics: Procurement clients receive online engineering diagnosis from electrical specialists to assist with wire feeder pressure arm alignment and troubleshoot abnormal drive roll wear caused by incorrect spring tension.
