L21733P00 Communication Processing Board

OTC DAIHEN Genuine Robot Controller Communication Processing Board L21733P00 In-Depth Analysis

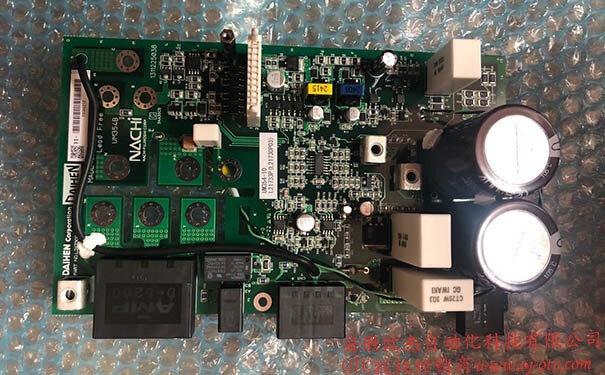

OTC DAIHEN L21733P00 Communication Processing Board (PCB hardware silkscreen codes: L21730P03 / L21733P) is a critical core circuit board installed inside OTC industrial robot control cabinets. Operating as the primary internal data processing and communication routing engine, this authentic Japanese imported circuit board manages high-speed bus communication, multi-axis motion command formatting, and internal processor data exchange. When robotic cells experience internal communication timeouts, servo data synchronization dropouts, or controller processing lockups, replacing this core communication processing board is the definitive hardware solution to restore controller reliability.

🔍 Dual-Part Designation & High-Speed Optocoupled Isolation

• 100% Dual-Part Number Interchangeability: In OTC official technical catalogs and maintenance inventories, this identical circuit board is ordered under part number L21733P00 while bearing factory hardware silkscreen stampings L21730P03 or L21733P across the PCB substrate. Both designations refer to the exact same authentic Japanese imported processing board. Providing 100% physical compatibility in mounting coordinates and backplane connectors, field engineers can execute direct drop-in replacements without rewiring or modifying controller software parameters.
• High-Speed Optocoupled Surge Isolation: Industrial welding workshops are subject to massive electrical ground potential surges and electromagnetic noise from heavy welding arcs. The L21733P00 board is populated with high-density optocoupler isolation arrays that block transient overvoltages and electrical noise, instantly trapping external surges outside the isolation zone to protect internal controller CPUs and memory chips.
• Industrial Conformal Coating Protection: Manufactured from heat-resistant multi-layer FR-4 copper-clad laminate, the PCB incorporates automated factory application of high-performance industrial conformal coating. This protective varnish seals delicate surface-mount components against workshop metal grinding dust, humidity, and cutting oil vapor, preventing micro-short circuits over extended service lives.

🔧 Field Replacement, ESD Prevention & Troubleshooting Guide

• Strict Adherence to ESD & Power-Off Protocols: Before opening the control cabinet and removing the old L21733P00 board, **technicians must disconnect the 380V main circuit breaker completely and wait at least 10 minutes for internal drive capacitors to discharge fully**. Furthermore, technicians must wear a grounded anti-static wrist strap (ESD Wrist Strap). Handling bare circuit boards with static-charged hands can destroy sensitive onboard processor ICs.
• Verify System Backplane Slots Before Installation: If the original communication board suffered damaged interface chips due to external electrical feedback, technicians must inspect backplane bus slots and ribbon cables for physical damage or contamination before installing the new board. Inserting a new L21733P00 board into a damaged backplane slot will cause immediate repeat burnout upon power-up.
• Secure Terminal Harnesses & Edge Connectors: When docking the new board into the cabinet backplane, ensure edge connectors align smoothly with guide rails before pressing firmly into place. Ensure all locking tabs on ribbon cables snap securely closed; loose connections generate high contact resistance, causing erratic communication errors.

• Expedited Worldwide Dispatch & Maintenance Support: For automated manufacturing plants experiencing welding line halts due to processing board failure, Anhui Oujie Automation provides rapid international express shipping of brand-new OEM communication boards directly from stock, along with remote technical guidance for hardware installation and system diagnostics.
• Complimentary System Diagnostics: Procurement clients receive remote technical backing from senior automation engineers to troubleshoot workshop grounding noise, bus communication dropouts, and data synchronization errors, protecting new circuit boards against premature damage.
