L23400S00 IF Arc Circuit Board

OTC DAIHEN Genuine FD19 Robot Controller High-Speed IF Arc Circuit Board L23400S00 (L23400S) In-Depth Analysis

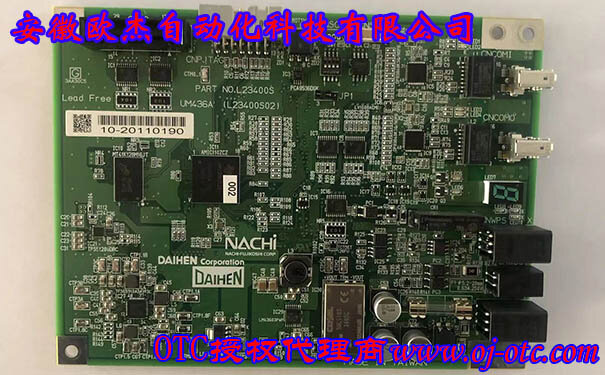

OTC DAIHEN L23400S00 IF Arc Circuit Board (PCB hardware silkscreen codes: L23400S / L23400S02) is a specialized high-speed interface processing circuit board engineered specifically for OTC FD Series (notably FD19 and advanced FD11) industrial robot control cabinets. Operating as the dedicated communication and waveform synchronization hub between the robot controller CPU and inverter welding power sources, this authentic Japanese imported PCB manages microsecond-level digital data exchange. When robotic welding workstations suffer from arc instability, unresettable communication timeouts between robot and welder, sporadic ignition failure, or parameter loss, replacing this core IF arc board restores high-speed welding communication and smooth arc ignition.

🌟 FD19 High-Bandwidth Specificity & Optocoupled Noise Immunity

• Dedicated High-Bandwidth Processing for FD19: Engineered specifically for the bus architecture and processing speed of OTC FD19 controllers, this IF arc board incorporates next-generation high-speed digital processing chips. Delivering microsecond-level zero-latency handshaking, it processes complex pulse waveform commands, wire feed rate adjustments, and real-time arc voltage feedback simultaneously, eliminating arc stutter and waveform distortion in automated welding cells.
• Full-Channel Optocoupled Surge Isolation: Industrial automated welding cells generate severe electromagnetic interference (EMI) and electrical ground potential surges during high-frequency arc strikes. The L23400S00 board is populated with high-density optocoupler isolation arrays that convert electrical signals to optical pulses and back, instantly blocking transient overvoltages and high-frequency noise from tracking between the welding power source and the robot controller CPU.
• Industrial Conformal Coating Protection: Manufactured from heat-resistant multi-layer FR-4 copper-clad laminate, the PCB incorporates automated factory application of high-performance industrial conformal coating. This protective varnish seals delicate surface-mount components against workshop metal grinding dust, humidity, and cutting oil vapor, preventing micro-short circuits over extended service lives.

🔧 Field Replacement, ESD Prevention & Troubleshooting Guide

• Strict Adherence to ESD & Power-Off Protocols: Before opening the control cabinet to remove the old L23400S00 IF arc board, **technicians must disconnect the 380V main circuit breaker completely and wait at least 10 minutes for internal drive capacitors to discharge fully**. Furthermore, technicians must wear a grounded anti-static wrist strap (ESD Wrist Strap). Handling bare circuit boards with static-charged hands can destroy sensitive onboard communication transceiver ICs.
• Inspect Communication Cables Before Installation: If the original IF arc board suffered damaged interface chips due to external electrical feedback from a welding machine, technicians must inspect connecting shielded data cables and connector pins for physical damage, oxidation, or short circuits before installing the new board. Connecting a new L23400S00 board into a compromised data bus will cause immediate repeat burnout upon power-up.
• Secure Edge Connectors & Terminal Harnesses: When docking the new board into the backplane or terminal header, align PCB edges smoothly with guide rails before pressing firmly into place. Ensure all locking tabs on communication harnesses snap securely closed; loose connections generate high contact resistance, causing erratic communication dropouts during automated welding cycles.

• Expedited Worldwide Dispatch & Maintenance Support: For industrial manufacturing plants experiencing welding line halts due to IF arc board failure, Anhui Oujie Automation provides rapid international express shipping of brand-new OEM communication boards directly from stock, along with remote technical guidance for hardware installation and system diagnostics.
• Complimentary Electrical System Diagnostics: Procurement clients receive remote technical backing from senior automation engineers to troubleshoot workshop grounding noise, peripheral PLC signal mismatch, and bus handshaking errors, protecting new circuit boards against premature damage.
