Name: P6255Y00 PCB (P6255Y) | OTC Welding Machine Main Control Board
Brand: OTC DAIHEN
SKU: P6255Y00

OTC Daihen Genuine Main Control PCB Board P6255Y00 (P6255Y)

P6255Y00 (often marked P6255Y on PCB silkscreen) is an official genuine main control circuit board custom-engineered by OTC Daihen for heavy-duty industrial MIG/MAG gas-shielded welding machines. Acting as the “central computing brain” of the power source, this board features high-density SMT manufacturing and industrial processors to command precision welding parameter regulation, wire feed motor synchronization, and full-time safety monitoring (overcurrent, overvoltage, thermal overload). Replacing an aged, moisture-damaged, or dust-shorted PCB with an original P6255Y00 board eliminates parameter drift, communication alarms, hard arc starting, and system freezes, restoring your welding machine to factory-level operating precision and power.

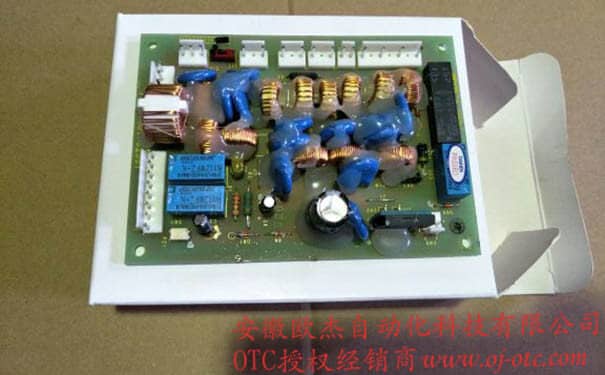

OTC Daihen Genuine PCB P6255Y Front View — Figure 1: Overall Front View of Genuine OTC MIG/MAG Main Control PCB P6255Y00 (P6255Y)

⚙️ Technical Specifications

Specification Attribute	Detailed Parameter
OEM Part Number	P6255Y00 (PCB surface silkscreen usually marked P6255Y)
Product Type	Welding Machine Main Control PCB Board
Compatible Models	Widely compatible with OTC Industrial MIG/MAG Welding Machine Series (Verify against existing machine nameplate)
Core Function	Main logic control, precision waveform parameter regulation, underlying overcurrent/overvoltage safety protection
Quality Guarantee	100% genuine brand-new OEM part; zero refurbished or repaired boards

OTC PCB P6255Y00 Fool-Proof Sockets — Figure 2: P6255Y00 Peripheral Communication Ports, Fool-Proof Sockets, and Moisture-Proof Coating Details

OTC PCB P6255Y00 SMT Layout — Figure 3: Industrial-Grade High-Density SMT Component Layout on P6255Y00

🔧 On-Site Installation & Troubleshooting Guide (Essential Reading)

External Short-Circuit Diagnostics: If the original PCB burned out, thoroughly inspect external wire feeder control cables and torch trigger wiring for insulation breakdown or chassis grounding before installing P6255Y00. If 380V/220V power penetrates 24V signal circuits, the replacement PCB will be destroyed instantly upon startup.
High-Voltage Capacitor Discharging: Mandatory safety protocol! After disconnecting physical input AC power, main filtering capacitors inside the welder retain lethal high voltage. Wait 10 minutes and use a DC multimeter to confirm that bus voltage has dropped to 0V before removing the old PCB, preventing residual voltage from destroying core ICs.
Strict ESD Antistatic Discipline: The board is populated with sensitive microprocessors and surface-mount ICs. Always wear a grounded ESD wrist strap when handling or installing the card, and never touch exposed connector pins or IC packages with ungrounded hands.
Fool-Proof Connector Insertion: Align all ribbon cable headers precisely with keyway slots and apply even, perpendicular pressure. Never rock or force connectors angled, as cracked solder pads or fractured copper leads trigger recurring communication errors.
