U724E01 Torch Shielding Nozzle

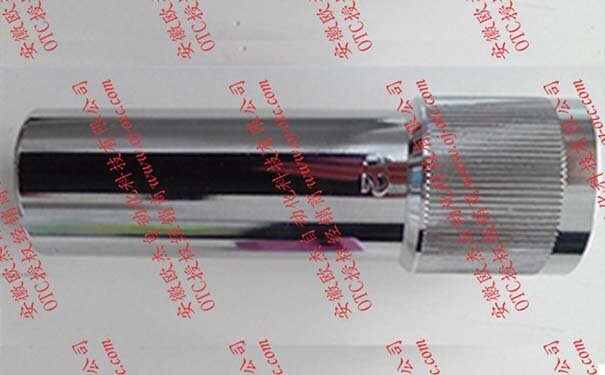

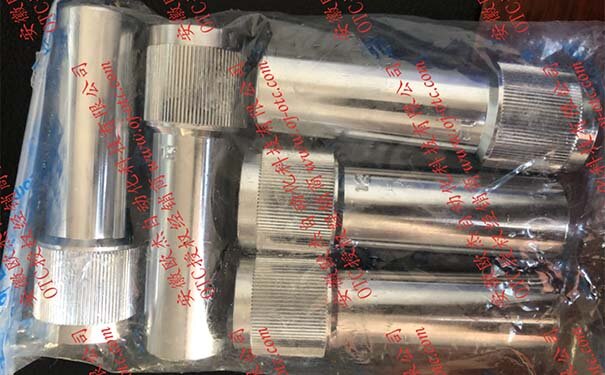

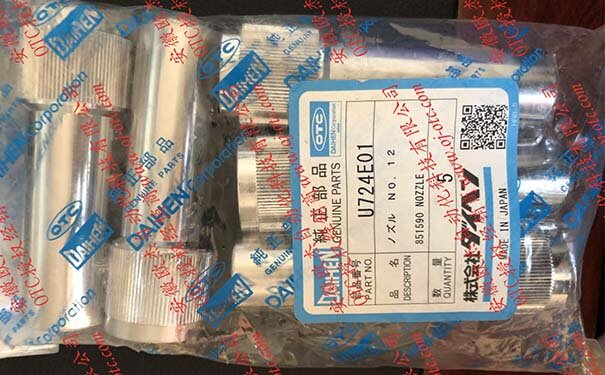

Original OTC DAIHEN U724E01 Water-Cooled Torch Shielding Nozzle

OTC DAIHEN U724E01 Water-Cooled Torch Nozzle (frequently referred to in the industry as a gas shielding sleeve or outer nozzle cup) is a premier consumable hardware component subject to high-frequency consumption at the front line of industrial robotic welding cells. Imported directly from Japan, this consumable is custom-engineered for RTW5000H heavy-duty water-cooled robotic welding torches. Installed at the outermost layer of the torch head to encapsulate the gas diffuser and contact tip holder, its mechanical mission is to constrict and rectify shielding gas flow, creating a high-density laminar protective canopy over the molten weld pool that isolates atmospheric oxygen and nitrogen from causing weld contamination.

🔍 Precision Mechanical Fits & Internal High-Insulation Features

• High-Purity Copper Substrate & Thermal Conductivity: Operating at the arc front, the nozzle directly endures intense radiant heat generated by 500A arc initiation. The U724E01 is forged from top-tier, high-purity copper exhibiting superior thermal conductivity. Working in tandem with the indirect cooling provided by the internal water passages of the RTW5000H torch body, it suppresses surface temperatures below critical thresholds, preventing material softening, deformation, or bore collapse under severe thermal cycling. To verify consumable configurations within complete torch assemblies, review our technical library: OTC DAIHEN RTW5000H Robotic Welding Torch Complete Exploded Diagram & Part Number Directory.
• Integrated High-Frequency Ceramic Insulator Ring: As shown in the close-up above, the internal threaded coupling interface integrates a precision-sintered ceramic insulating sleeve. This high dielectric strength layer completely isolates the outer copper shell from internal electrical pathways, preventing high-voltage, high-frequency arc initiation surges from discharging into workpiece clamping fixtures and triggering controller short-circuit errors.
• Laminar Internal Gas Chamber: The inner gas bore undergoes rigorous mechanical deburring and physical polishing. This mirror-like surface ensures Ar / $ ext{CO}_2$ shielding gas mixtures discharge in a smooth laminar flow state without turbulence or aspiration, eliminating macro-porosity weld defects caused by atmospheric entrainment.

🔧 Torch Cleaning Station Protocols & Spatter Short-Circuit Prevention Guide

• Prevent Spatter Buildup from Creating Short Circuits: During continuous high-amperage welding, molten metal spatter inevitably adheres inside the nozzle bore and forms slag. **When excessive spatter accumulation bridges the gap between the internal contact tip holder and the outer nozzle shell, the ceramic insulation layer is bypassed.** If the robot subsequently executes wire searching routines or brushes against tooling fixtures, high-voltage ignition surges will discharge backward through the torch bracket, destroying robotic control board ICs.
• Automated Reamer Cleaning (Avoid Scraping with Iron Bars): Workshop operators frequently use chisels or steel files to scrape spatter out of nozzles violently. This mechanical abuse destroys the polished internal bore and cracks the ceramic insulating ring, roughening the surface and accelerating future spatter adhesion. Standard protocol mandates integrating an automated **Robotic Nozzle Cleaning Station**, utilizing dedicated mechanical reamers for non-destructive bore cleaning accompanied by scheduled anti-spatter fluid injection.
• Immediate Scrap Criteria for Deformed Nozzles: Nozzles represent thermal consumables. If the exit orifice becomes pitted, notched by spatter impact, or deformed out of round, the protective gas umbrella becomes asymmetric. To maintain ultrasonic and radiographic NDT qualification rates on automated production lines, replace deformed nozzles immediately in batches.
