W400 AC/DC Pulse Welder

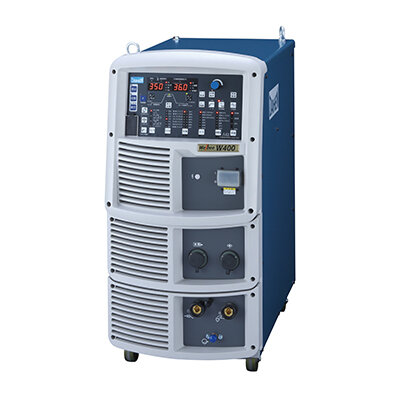

OTC DAIHEN Welbee W400 (WB-W400) Full-Digital AC/DC Pulse MIG/MAG Welding Power Source In-Depth Technical Analysis

The OTC DAIHEN W400 (Official Model: WB-W400) is a dominant flagship in the Welbee family, celebrated as the ultimate tool for “aluminum welding and ultra-thin plate fabrication.” Powered by OTC’s globally proprietary “AC Pulse Welding Method,” it completely eliminates the industry bottleneck of burn-through on ultra-thin aluminum sheets and stainless steel. Boasting a 33% increase in output current over legacy models up to 400A, the W400 excels at precision welding of 0.8mm thin sheets while effortlessly executing heavy deep-penetration welding on medium plates. It is widely deployed in aluminum shipbuilding, automotive lightweight aluminum components, rail transit, and precision sheet metal manufacturing.

🌟 Core Digital Advantages & AC/DC Process Selling Points

• Proprietary AC Pulse Welding Method: In conventional DC pulse welding, heat concentrates heavily on the workpiece, easily burning through thin sheets. The W400’s AC Pulse technology continuously switches极性 (EN/EP) during welding. By precisely controlling the electrode negative/positive ratio, it dramatically reduces heat input to the base metal while utilizing reverse polarity to clean surface oxide films—yielding ultra-thin welds of artistic quality.
• Upgraded Double Pulse Technology: Integrates newly enhanced double pulse control algorithms. Through the precise alternation of low and high-frequency pulses, the weld seam achieves an aesthetically flawless “fish-scale” appearance while actively agitating the weld pool. This allows trapped hydrogen gas to escape completely, drastically cutting porosity defect rates in aluminum welding.
• All-Material Mastery & 33% Power Boost: Beyond aluminum, the W400 is an all-around master of carbon steel and stainless steel. Compared to previous generations, peak output current is boosted by 33% to reach 400A. Whether running hard aluminum, soft aluminum, solid wires, or flux-cored wires, operators can access Welbee’s internal expert database for instant, perfect synergic welding.

📋 Welbee W400 Core Technical Specifications & Standard Configuration Matrix

Below is the detailed electrical, physical parameter, and heavy-duty matching component table. Please note the specific rated duty cycle calibrations across different pulse operating modes:

🔧 AC Pulse Aluminum Welder Field Maintenance & Operational Guide

• Strict Material Exclusivity for Aluminum Packages: When welding aluminum alloys with the W400, using standard carbon steel wire feeders (CM-7402) and steel torches is strictly prohibited! You must switch to CMA/CMAW series dedicated aluminum wire feeders (featuring U-groove feed rolls) and aluminum welding torches fitted with Teflon liners (WTA/WTAW). Carbon steel V-groove rolls and steel coiled liners will crush soft aluminum wire or shave off metallic debris, causing severe wire tangling (“bird-nesting”) and jamming inside the torch cable.
• Contact Tip & Water-Cooling Warning for AC Pulse Mode: AC Pulse polarity switching directs greater arc heat toward the welding torch to clean base metal oxide films. As a result, contact tip thermal stress is significantly higher than in standard DC welding! For continuous aluminum welding around 300A, you must equip a WTAW400-SD water-cooled welding torch paired with a recirculating water cooler. Operating air-cooled torches under high-current AC Pulse will cause rapid barrel melting and contact tip thermal expansion that seizes the aluminum wire.
• Gas Purity & Base Metal Cleaning Rules: Exceptional aluminum weld formation relies heavily on shielding gas quality. You must use high-purity argon (Ar) reaching 99.999% purity! Mixing in any CO₂ is forbidden. Additionally, base metal surfaces must be wire-brushed with stainless steel bristles to remove heavy oxide scale and oil grease prior to welding; otherwise, even the W400’s reverse-polarity cleaning action cannot prevent porosity.
