Introduction to Binzel ABIROB® 350GC Air-Cooled Welding Gun

The Binzel ABIROB® 350GC is a high-performance air-cooled welding gun designed specifically for robotic and automated welding applications. It delivers excellent arc stability, efficient cooling, and long service life. The modular neck system allows for flexible integration into various robot cells.

This page provides detailed information on the Binzel ABIROB® 350GC torch neck configurations and genuine consumable parts.

Torch Neck Configurations

The ABIROB® 350GC torch neck is available in two angle options with standard, short, and long versions.

Gun Neck Angle	30°	35°
Standard	---	980.0004
Short	980.0027	---
Long	980.0028	---

Note: Consumable parts and spare parts are not included in the factory standard configuration. Please order separately based on your application needs.

Genuine Consumable Parts for ABIROB® 350GC

The ABIROB® 350GC uses a range of high-quality consumables to ensure optimal welding performance. The main consumable parts include the contact tip holder, diverter, nozzle holder, contact tip, and nozzle.

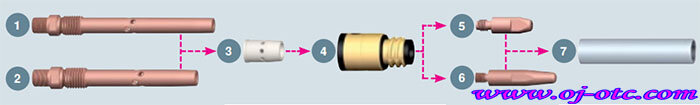

Binzel ABIROB® 350GC consumable parts overview

Contact Tip Holder

The contact tip holder is available in European M6 copper and Asian-style M6 copper versions.

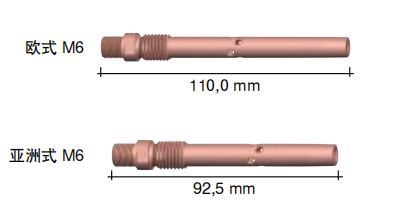

Binzel ABIROB® 350GC contact tip holder

Type	Order Number
European M6 copper	142.0152
Asian style M6 copper	142.0143.5

Diverter

Binzel ABIROB® 350GC diverter

Type	Order Number
Standard	980.0019

Nozzle Holder

Binzel ABIROB® 350GC nozzle holder

Type	Order Number
Standard	980.0142.10

Contact Tips

The ABIROB® 350GC uses M6 contact tips (European and Asian styles). Select the appropriate tip based on your wire diameter.

Binzel ABIROB® 350GC contact tips

Material	Wire Dia. (mm)	M6 European Contact Tip	M6 Asian Contact Tip
CuCrZr silver plated	0.8	140.0054	---
	0.9	---	140.1355
	1.0	140.0245	140.1356
	1.2	140.0382	140.1357

Nozzles

The ABIROB® 350GC offers conical, bottle-type, and column-type nozzles. Dimensions A, B, and C are shown in the diagram below.

Binzel ABIROB® 350GC nozzles

Type	A (mm)	B (mm)	C (mm)	Order Number
Conical	20	12	89.5	145.0558
Conical	20	13	89.5	145.0573
Bottle type	20	14	89.5	145.0559
Column type	20	15	89.5	145.0557

Why Choose Binzel ABIROB® 350GC?

Air-cooled design – lightweight and ideal for high-speed robotic welding.
Flexible neck options – 30° and 35° angles with short/long versions.
Genuine Binzel consumables – guarantee long life and consistent arc quality.
Easy integration – compatible with most robotic systems.
