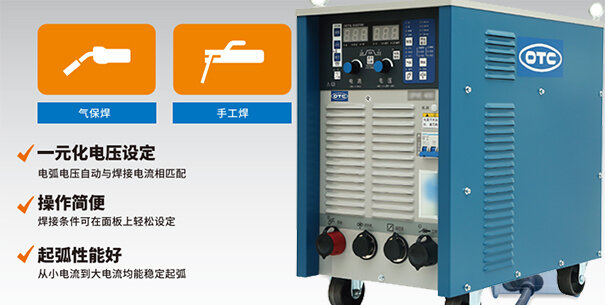

CO₂/MAG/MIG Welding Machine

  • CPVF500


  • CPVF500 welding machine has a wealth of internal functions, which can be selected according to the field line
    . The welding condition memory value can be fine-tuned
    . The knob of the remote control box can be used to fine-tune the welding current and voltage that have been memorized in the welding condition memory.
    ·Arc hardness adjustment

  • Online orders

The welder can adjust the arc softness and hardness through the arc characteristic knob according to actual needs.
·Soft arc mode
newly added soft arc mode (CO2 low carbon steel solid wire d1.2).
·Constant penetration control function
can obtain stable penetration even when the height of the welding torch changes.

CPVF500 welding machine has full digital IGBT inverter control technology to achieve excellent welding performance
. It adopts OTC's unique waveform control method to stabilize arc and reduce spatter.
·Further improved arc starting performance.
·New modes such as manual welding have been added, and one machine can be used for multiple purposes.
    CPVF500 welding machine has rich welding condition management functions
. It can memorize and store 30 welding specifications, and the remote control box can directly retrieve 10 of them.
·Panel key lock function to prevent accidental touch from changing welding conditions.
·Welding condition password lock function to prevent welding conditions from being changed at will.
    The CPVF500 welding machine further improves the welding efficiency
and achieves a 100% duty cycle to meet the needs of customers for high-efficiency welding.
    CPVF500 welding machine has a unified voltage setting function
. The arc voltage automatically matches the set welding current, and can be finely adjusted.
    Safety design function of CPVF500 welding machine
· Welding torch switch safety protection function to avoid potential safety hazards caused by misoperation.
·When the gas detection exceeds 2 minutes, the gas detection switch is automatically turned off.

Let's take a look at the parameters of the CPVF500 welding machine:

Welding power supply modelCPVF500
Input voltage380V
Rated input power23.0kVA ,22.0kW
Rated input current35.0A
Rated output current500A
Rated load voltage39.0V
Output current range30~500A
Output voltage range12~45V
Rated duty cycle100%
Protection classIP23S
Dimensions (W*D*H)345*580*624(mm)
Wire feeder modelCM-9202
Applicable welding wire(0.8),(0.9),(1.0),1.2,1.4,(1.6)
wire feed speed1.5~22m/min
Welding wire weight25kg
Welding gun modelWT5000-SBD
Applicable wire diameter1.2, (1.4), (1.6)
cooling methodair cooling
Control CableK10012R01
Base metal side cableBKPT-7002

The above are the equipment parameters of OTC welding machine CPVF500, you can check it, if you need to buy any accessories of OTC, you can contact me. Our company sells all types of OTC equipment, original parts and spare parts. Our company is an OTC designated agent distributor in China. All parts are guaranteed to be genuine. Tel:+86-180-9663-1656 (same wechat and WhatsApp numbers). At the same time, you are welcome to join my wechat to exchange knowledge and information about OTC welding machine experience. You can also email me 15305667776@163.com and ahojotc@gmail.com. For network reasons, if you want to send me an email, please send it to both email addresses at the same time. thank you very much.
