CO₂/MAG/MIG Welding Machine

CPVS500

The CPVS500 welding machine can set the voltage in a unified way: the arc voltage automatically matches the welding current;

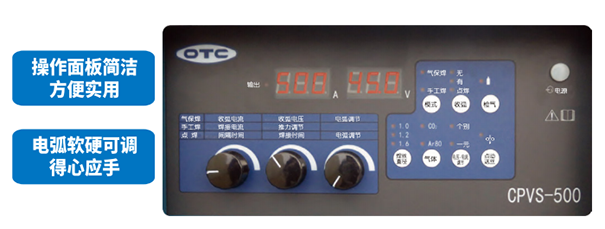

the CPVS500 welding machine is easy to operate: the welding conditions can be easily set on the panel;
CPVS500 welding machine has good arc starting performance: from small current to large current, it can start arc stably.
Online orders

OTC WelderThe CPVS500 welding machine can set the voltage in a unified way: the arc voltage automatically matches the welding current;
the CPVS500 welding machine is easy to operate: the welding conditions can be easily set on the panel;

CPVS500 welding machine has good arc starting performance: from small current to large current, it can start arc stably .

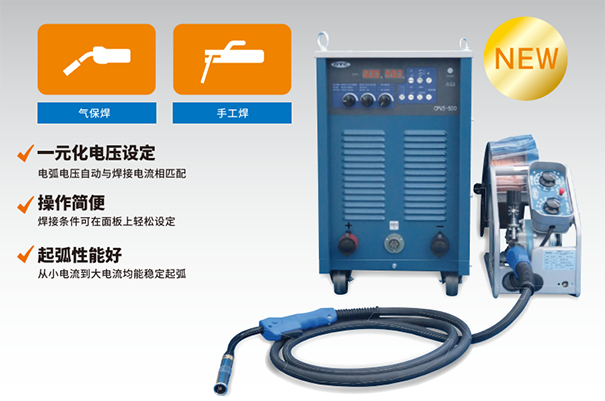

CPVS500 Welder

Let's take a look at the parameters of CPVS500 welding machine:

• Welding power source model	CPVS500
Input voltage	380V
Rated input power	24kVA ,22.0kW
Rated input current	35.5A
Rated output current	500A
Rated output voltage	39V
Output current range	30~500A
Output voltage range	12~45V
Maximum no-load voltage	64V
Rated duty cycle	60%
Protection class	IP21S
quality	51.2kg
*Dimensions (WDH)*	345550580(mm)
• Wire feeder
Wire feeder model	CM-9202
Applicable wire diameter	(0.8),(0.9),1.0,1.2,(1.4),(1.6)
wire feed speed	1.5 ~22m/min
Welding wire weight	25kg
quality	8kg
• Gun configuration
Welding gun model	WT5000-SBD
Applicable wire diameter	1.2, (1.4), (1.6)
cooling method	air cooling
•Control Cable	K10012Q01
•trachea	K5857
• Flowmeter	HLCO2-9

CPVS500 Welder

The above are the equipment parameters of OTC welding machine CPVS500 , you can check it, if you need to buy any accessories of OTC, you can contact me. Our company sells all types of OTC equipment, original parts and spare parts. Our company is an OTC designated agent distributor in China. All parts are guaranteed to be genuine. Tel:+86-180-9663-1656 (same wechat and WhatsApp numbers). At the same time, you are welcome to join my wechat to exchange knowledge and information about OTC welding machine experience. You can also email me 15305667776@163.com and ahojotc@gmail.com. For network reasons, if you want to send me an email, please send it to both email addresses at the same time. thank you very much.
